Highlights
- Proportional Response Tuned Carbon frame, 160mm / New RockShox Zeb Select 160mm fork
- New SRAM GX/NX 12-speed shifting / SRAM Guide RE 4-piston brakes

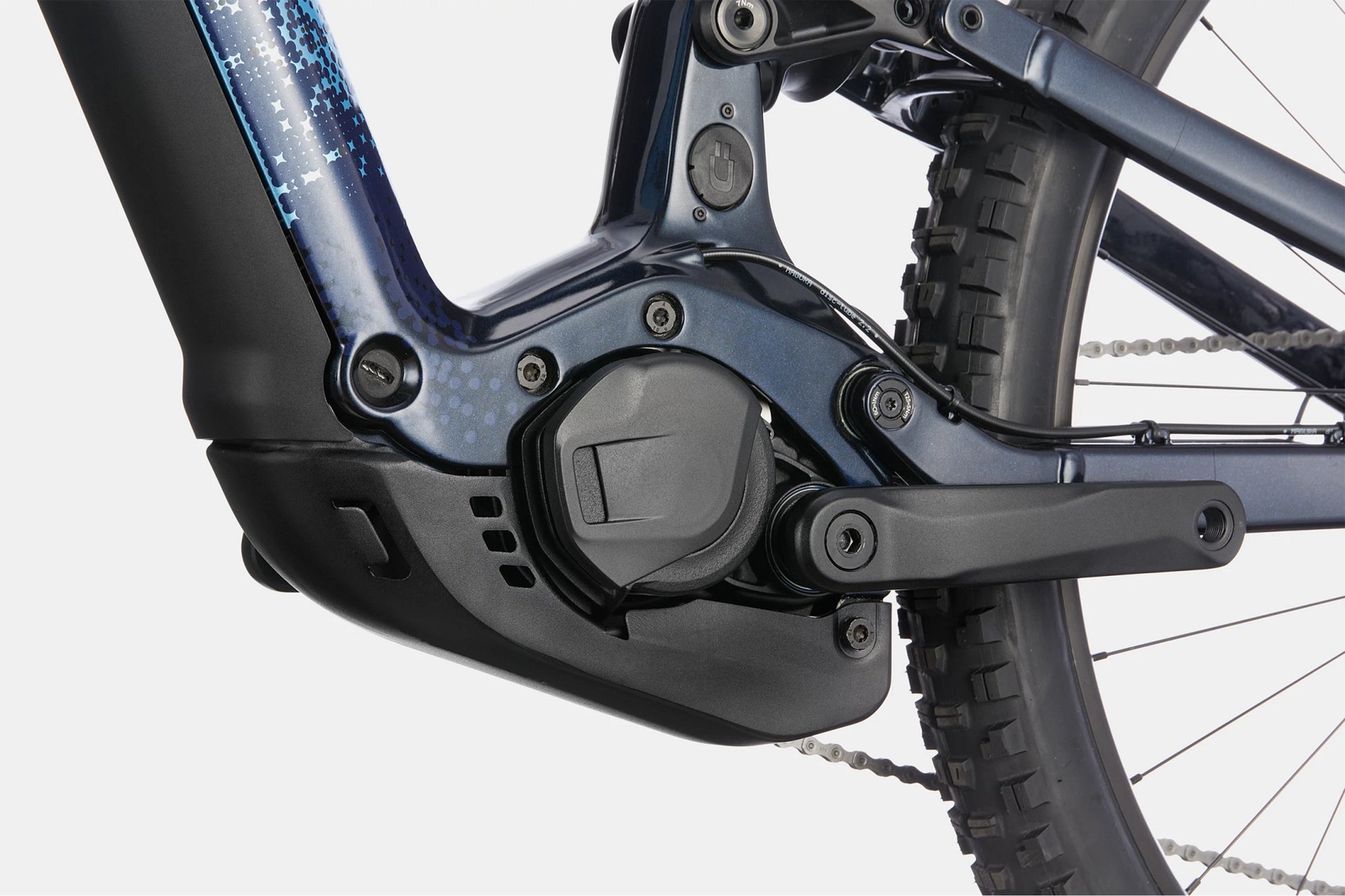

- Bosch Performance Line CX drive unit / 625Wh battery / Range: up to 108km (67mi)
Specs
Chain: SRAM NX Eagle, 12-speed
Crank: FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
Rear Cogs: SRAM XG-1275 Eagle, 10-52, 12-speed

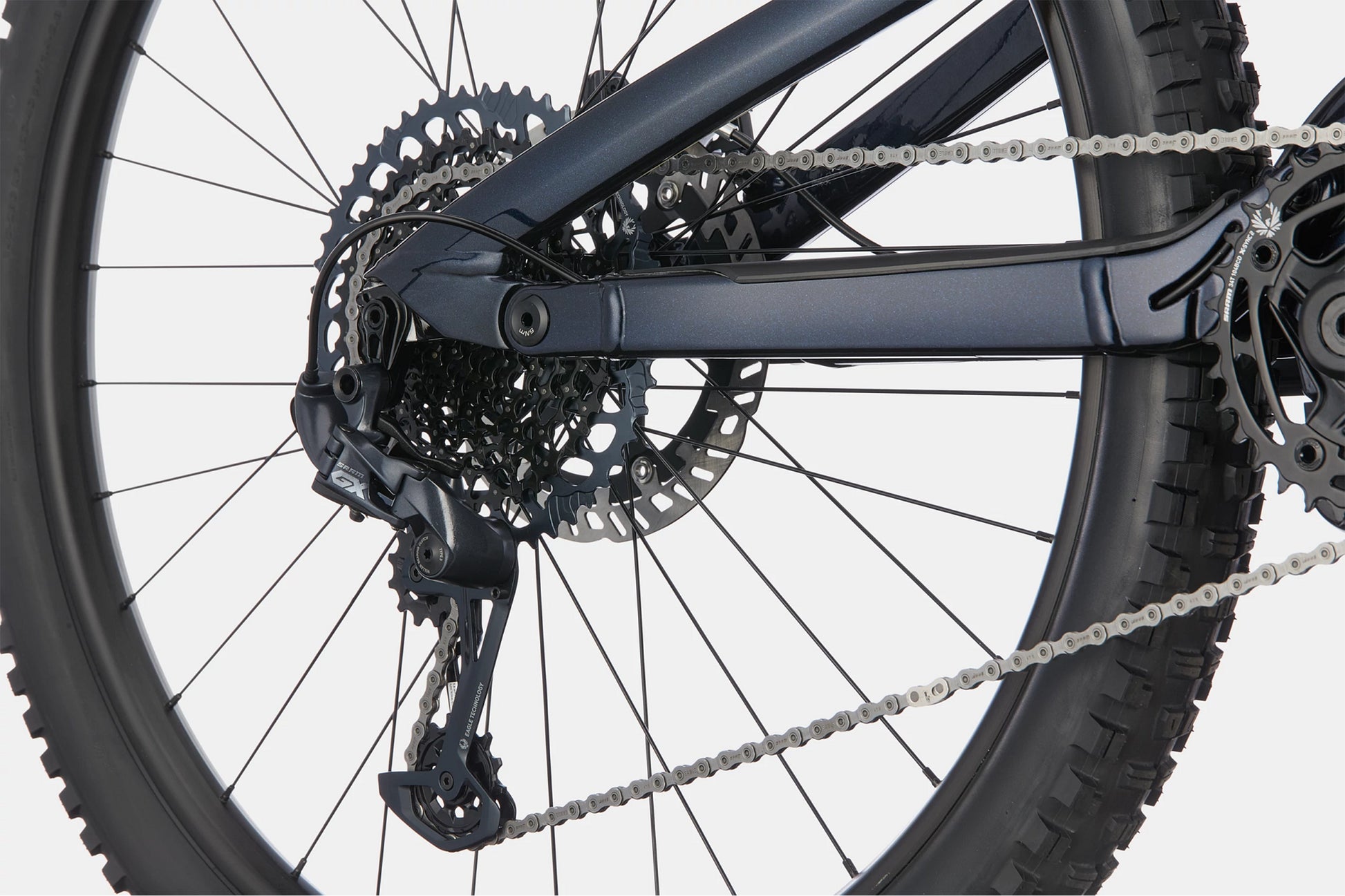

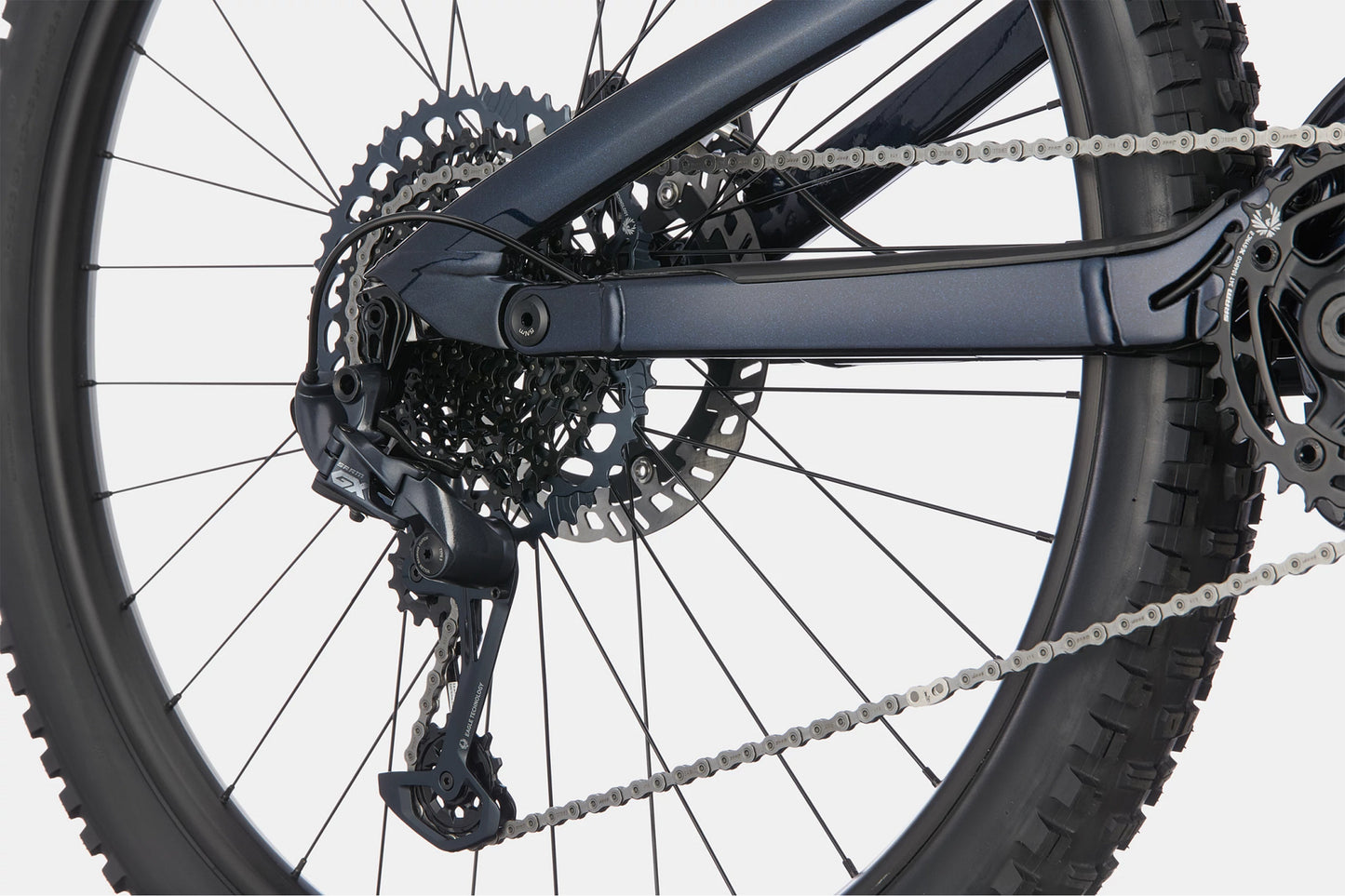

Rear Derailleur: SRAM GX Eagle
Shifters: SRAM NX Eagle, single click, 12-speed
Fork: RockShox Zeb Select, Charger RC, 160mm, DebonAir, 15x110, 51mm offset
Frame: 160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Headset: Integrated Sealed Bearing, Tapered

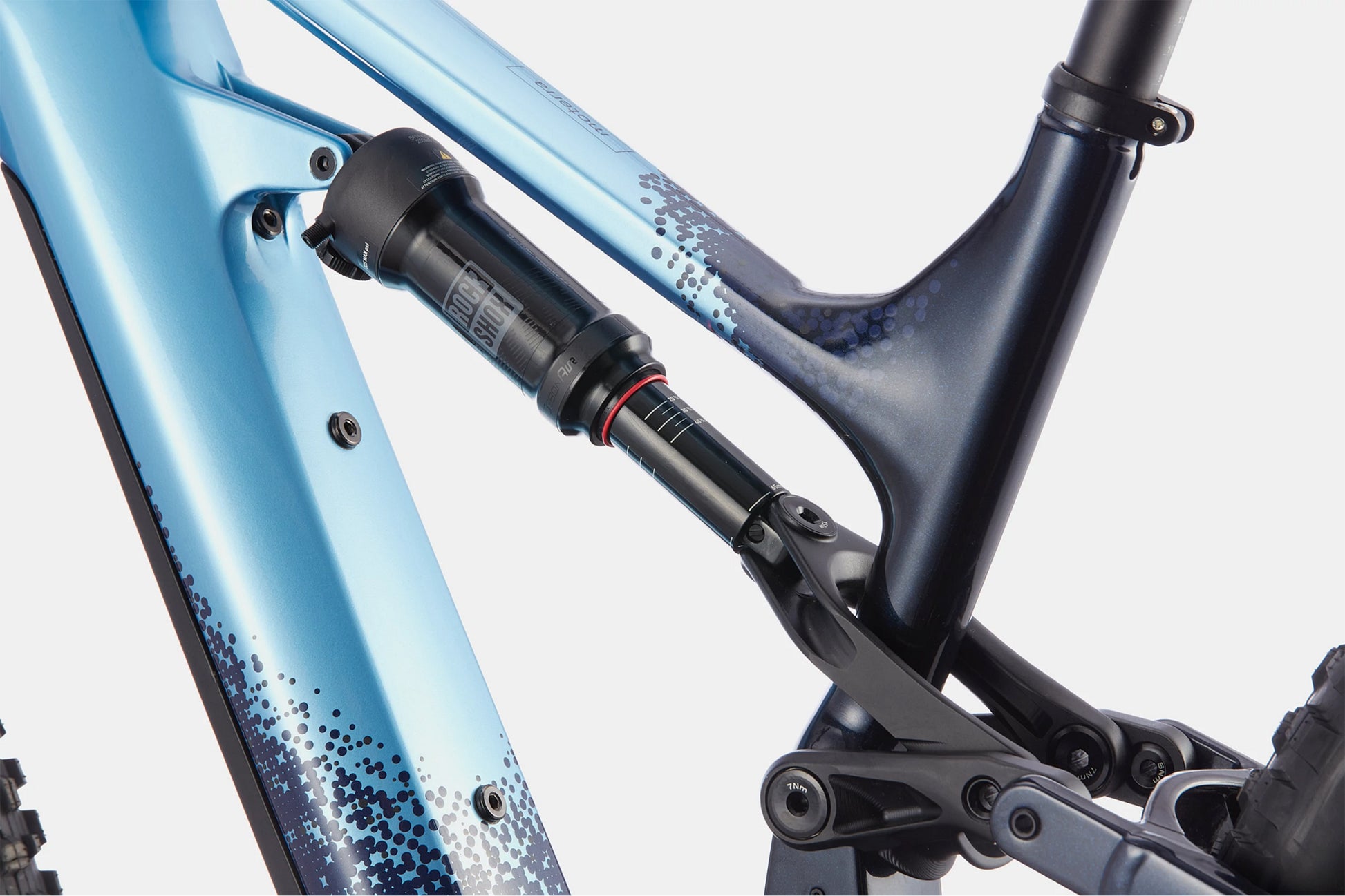

Rear Shock: RockShox Deluxe Select R, DebonAir
Brake Levers: Magura MT5 Trail HC hydraulic disc
Brakes: Magura MT5 4-piston hydraulic disc, Magura MDR-P 220/203mm, 6-bolt rotors
Grips: Fabric FunGuy

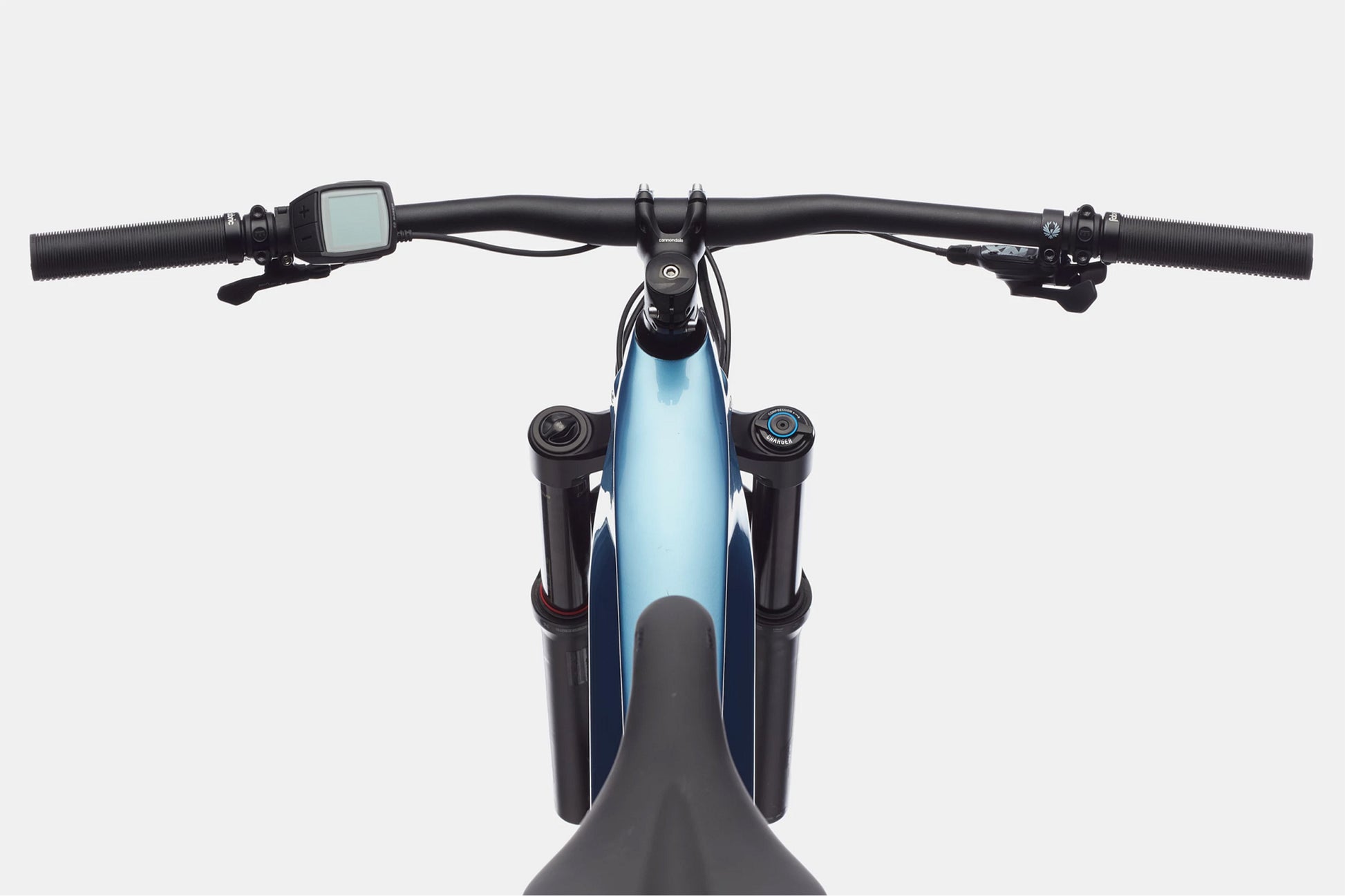

Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Saddle: Fabric Scoop Shallow Sport, steel rails
Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 100mm (S), 125mm (M), 150mm (L/XL)
Stem: Cannondale 1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
