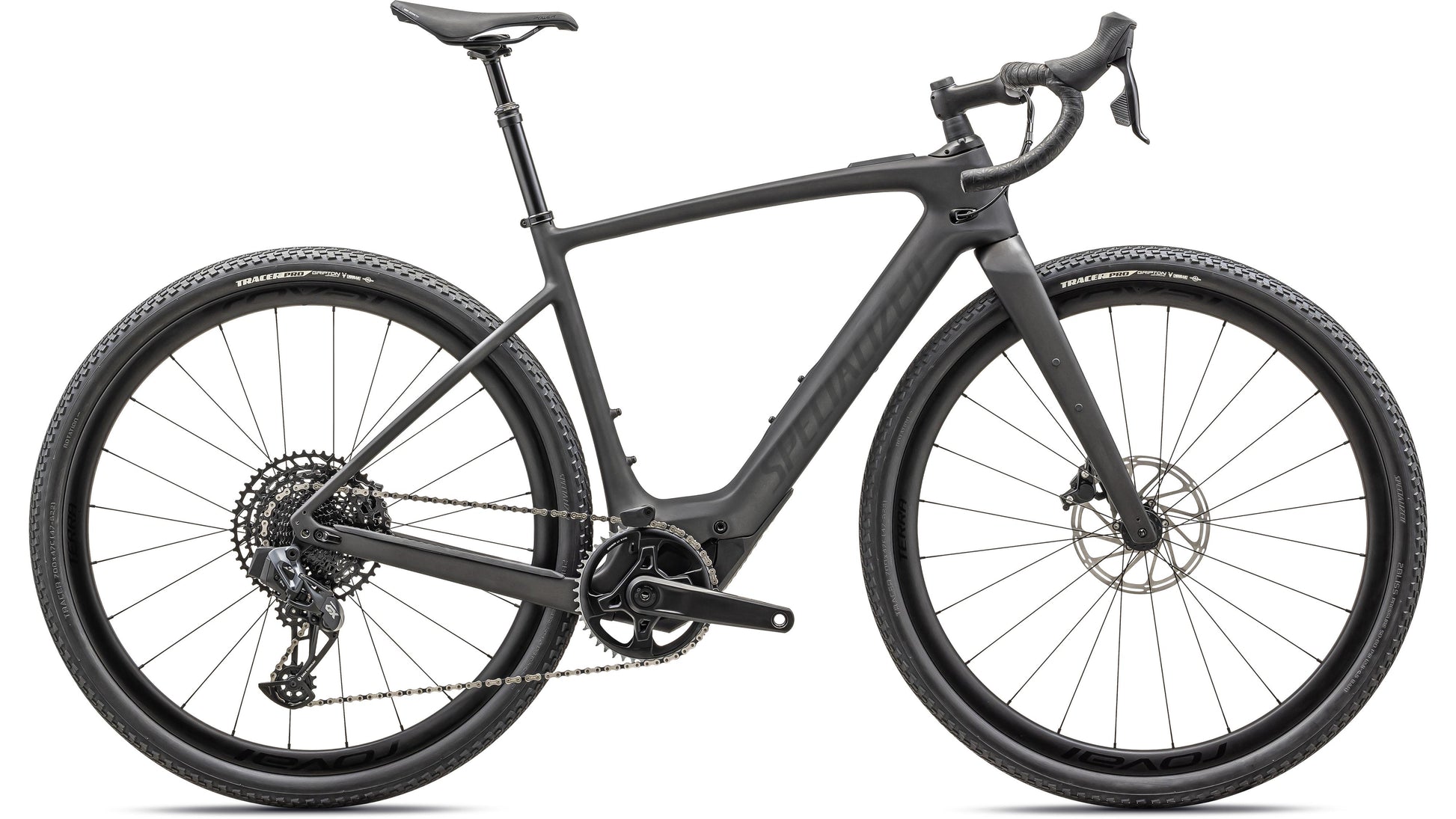

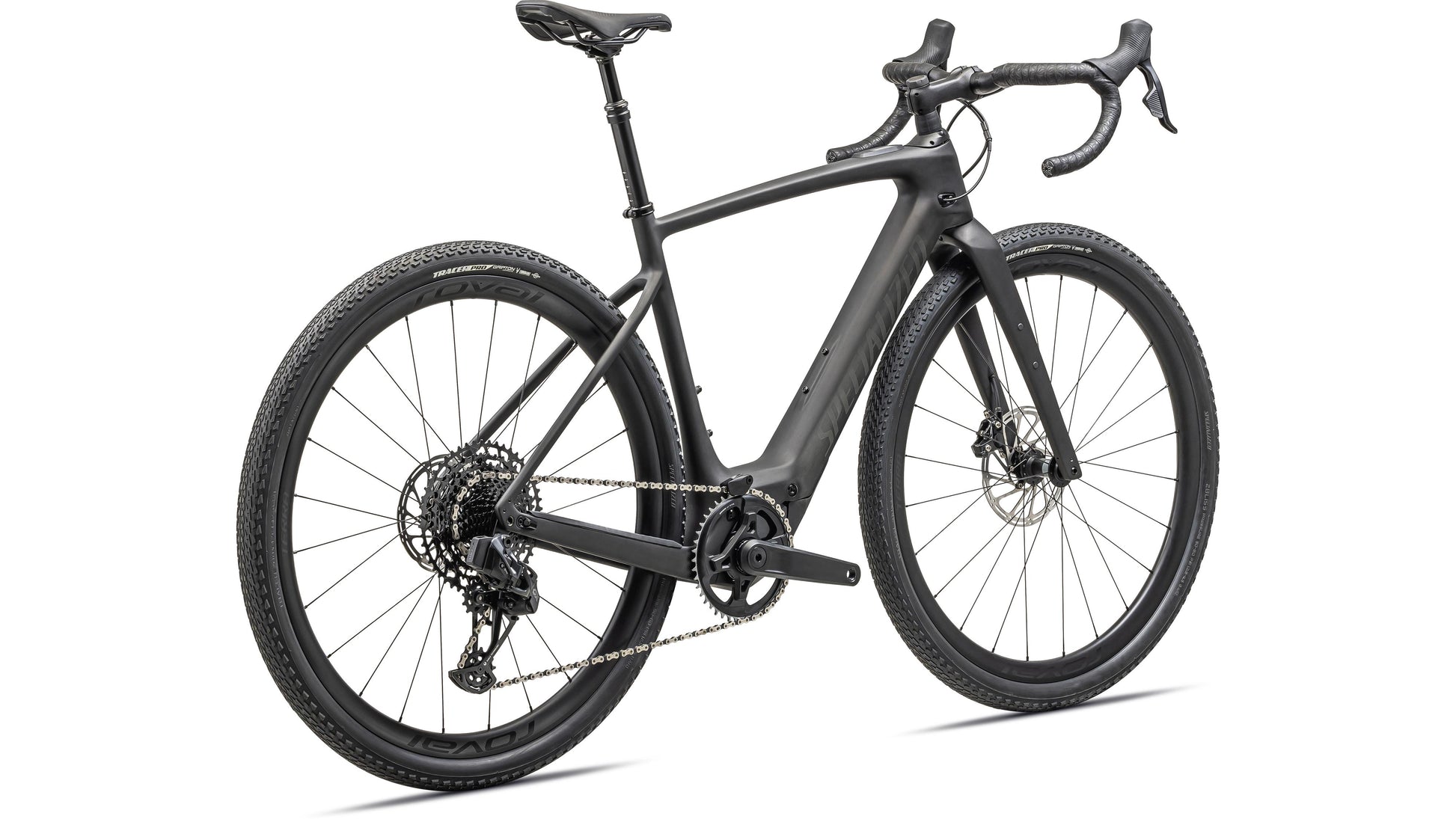

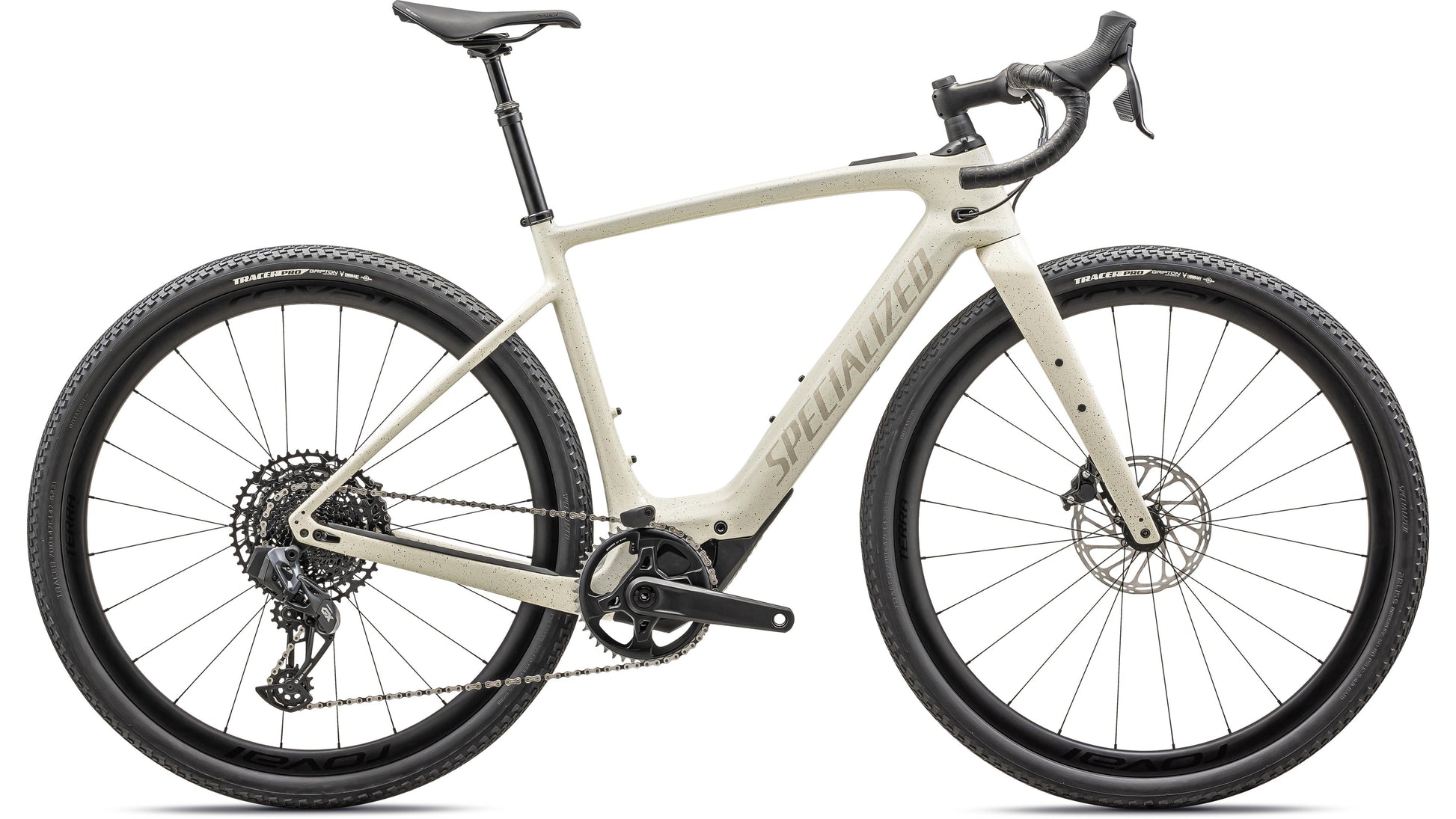

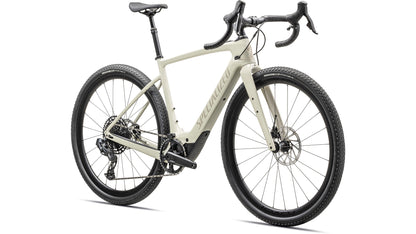

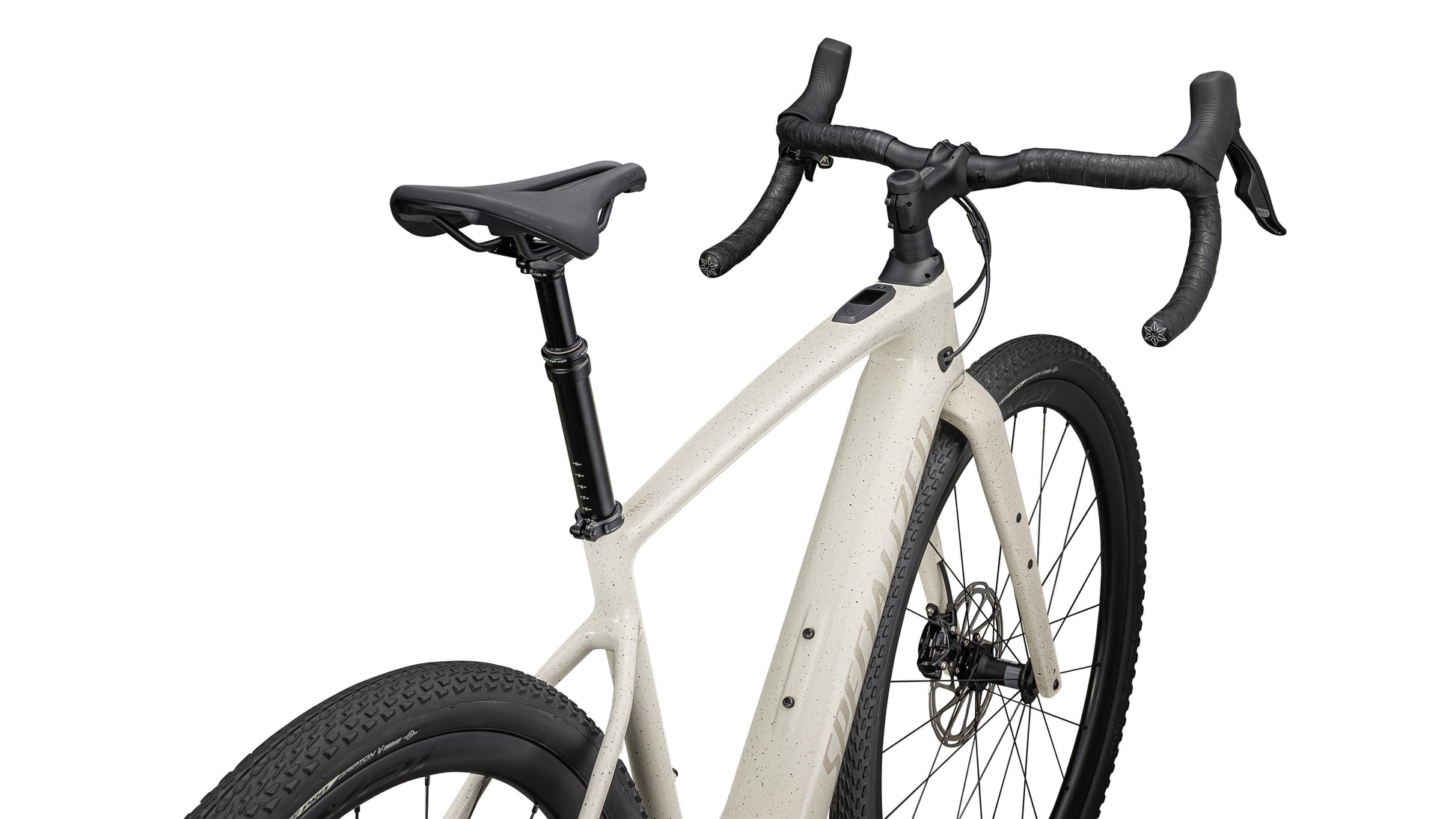

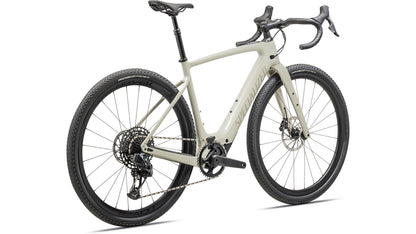

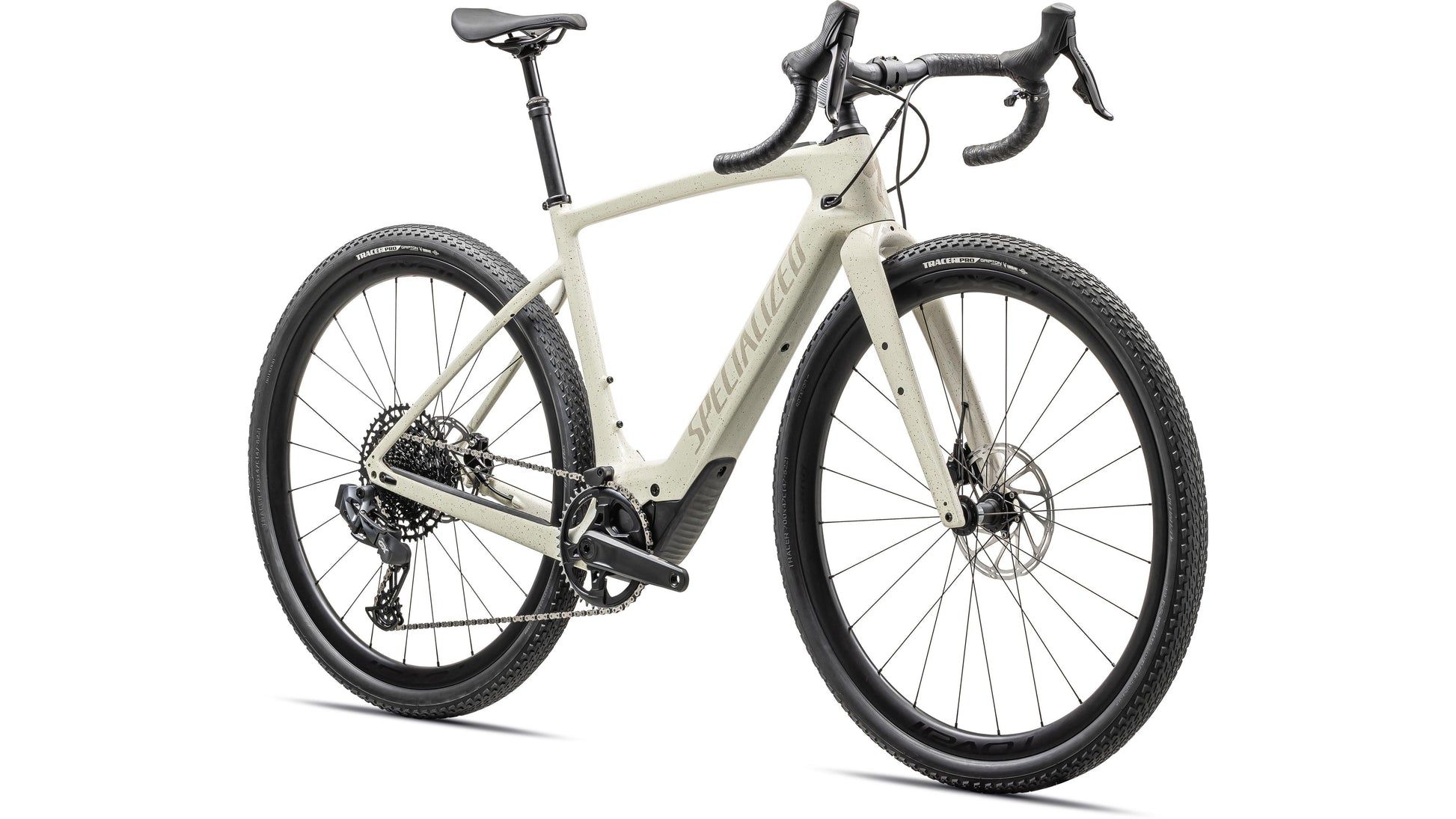

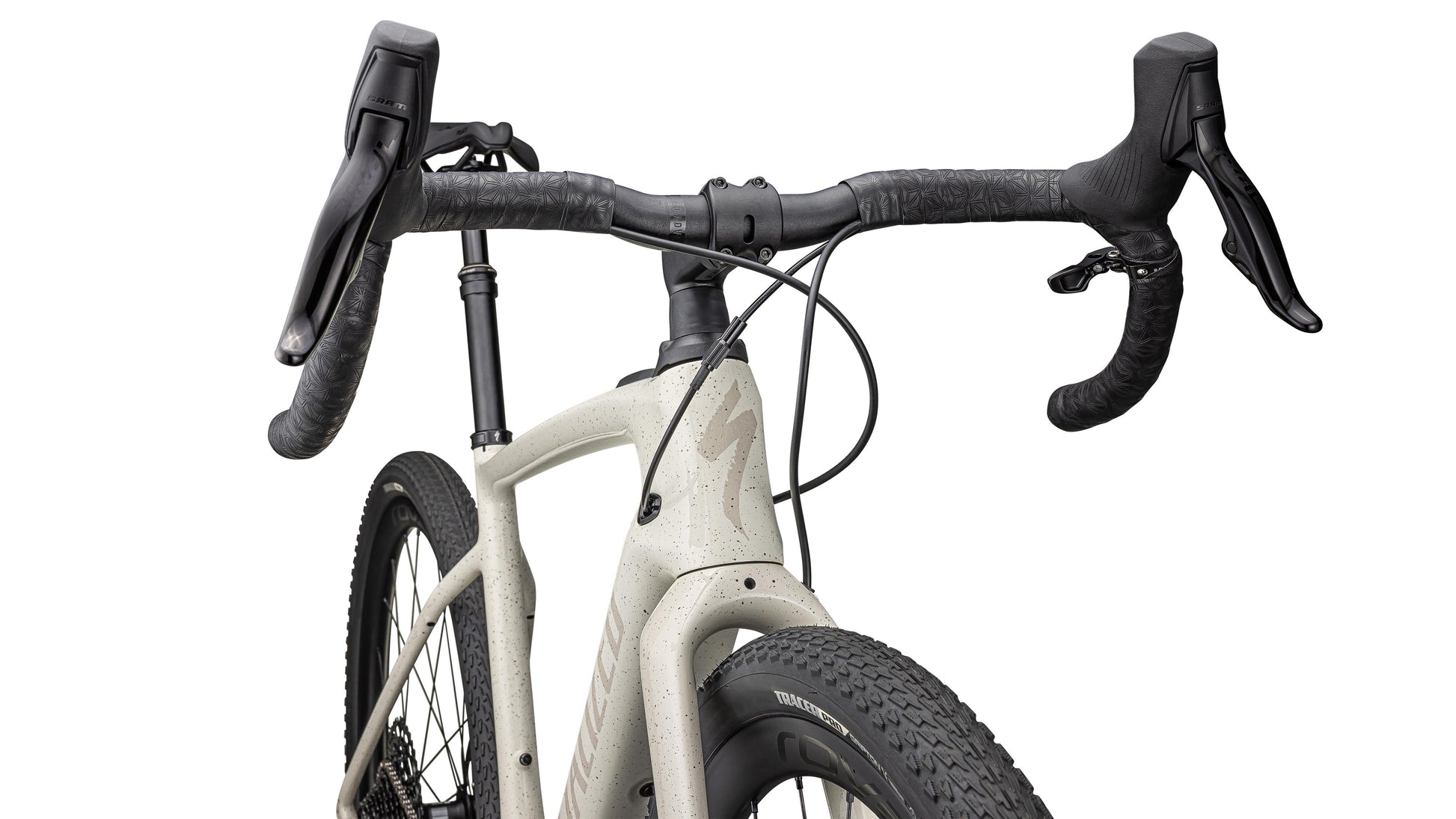

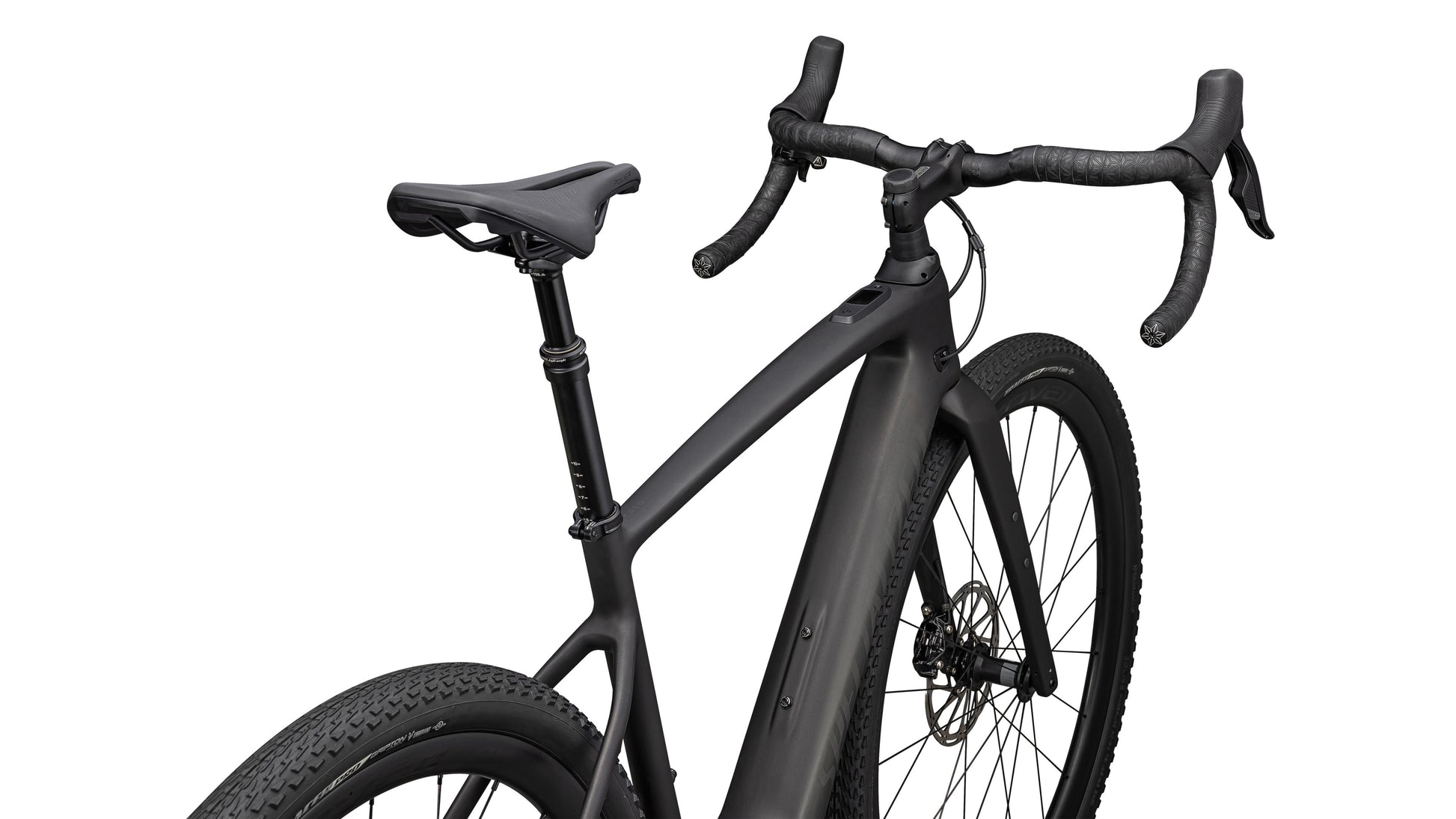

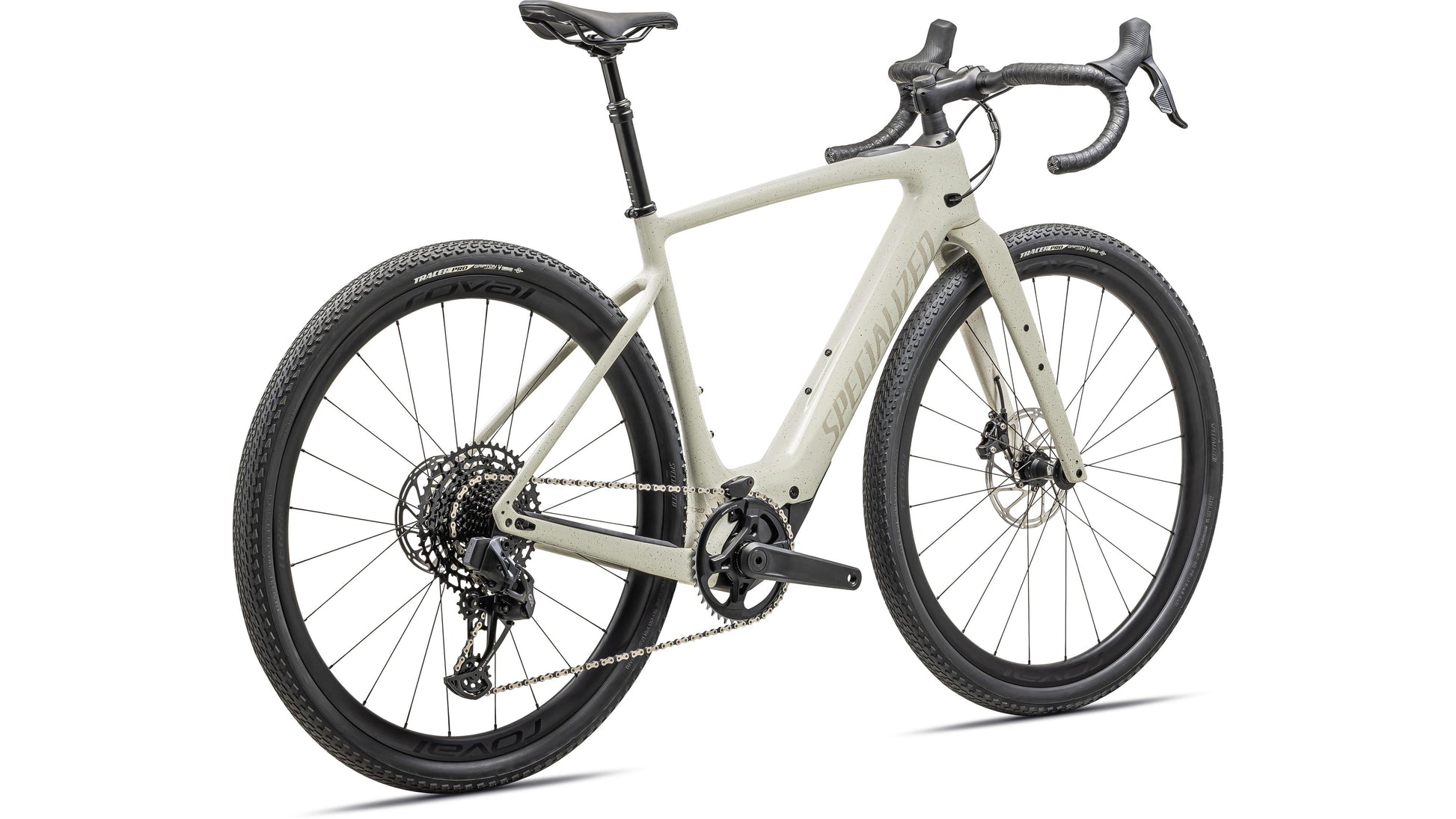

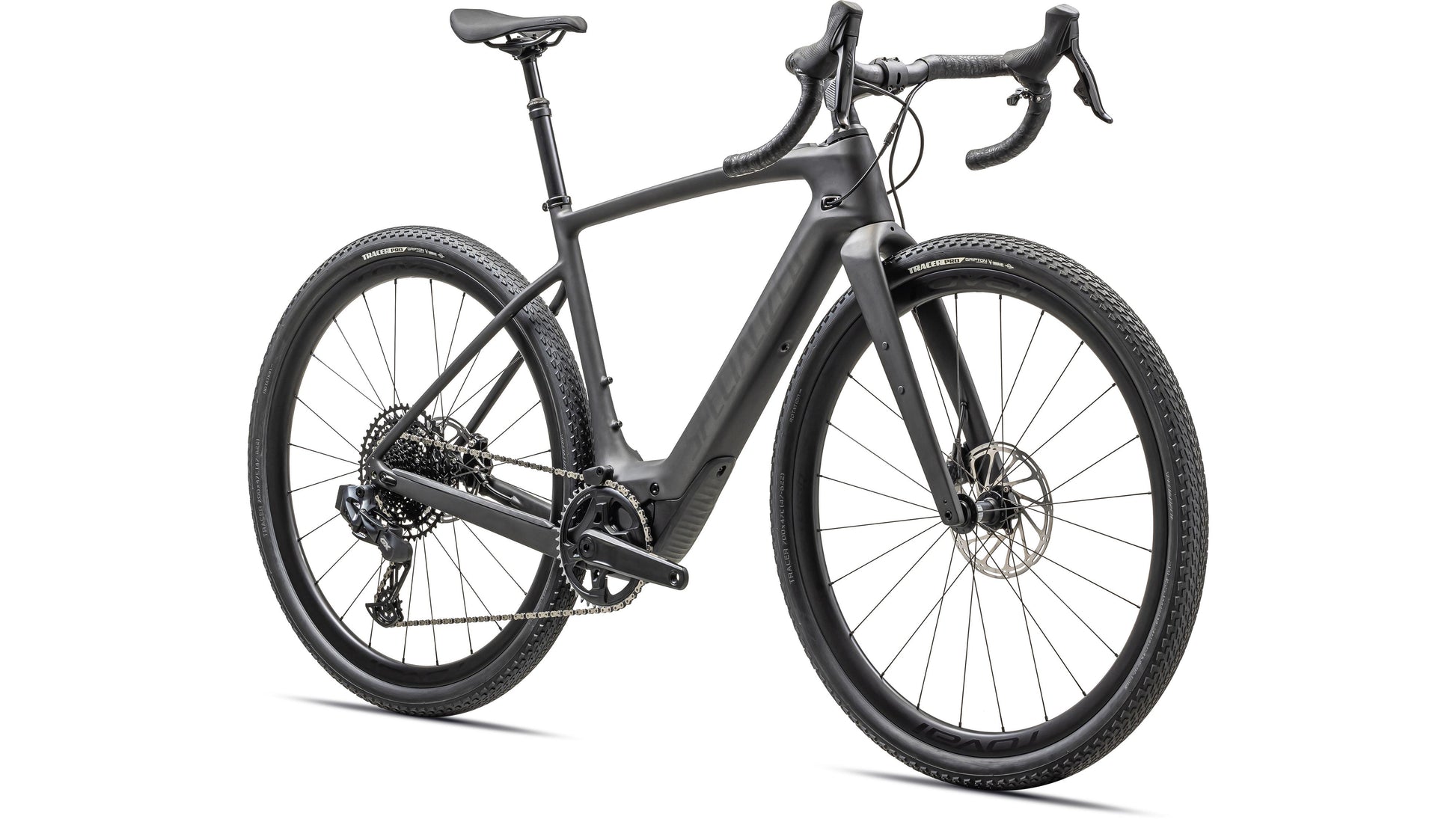

2024 Specialized Turbo Creo 2 Expert - SRAM Rival / GX Eagle AXS Features
Road or Gravel? 5 miles or 5 hours? Climb or Descend? Suffer or Smile? More power or less weight? Creo 2 isn’t about having to choose. It’s about having it all. With more power, big range, lightweight, huge tire clearance, and Future Shock 3.0, it’s category defying, making previously impossible rides possible.
At a Glance

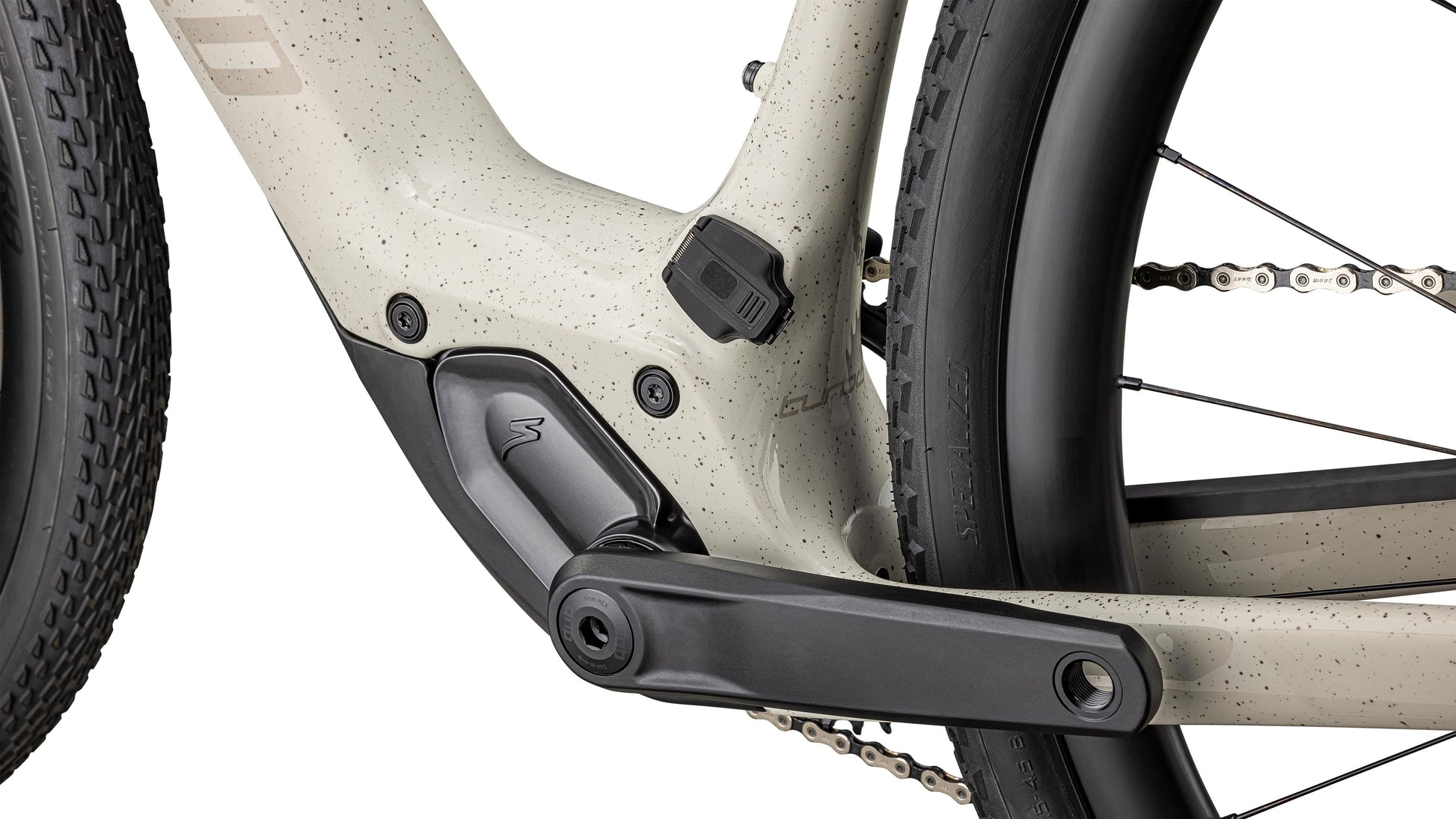

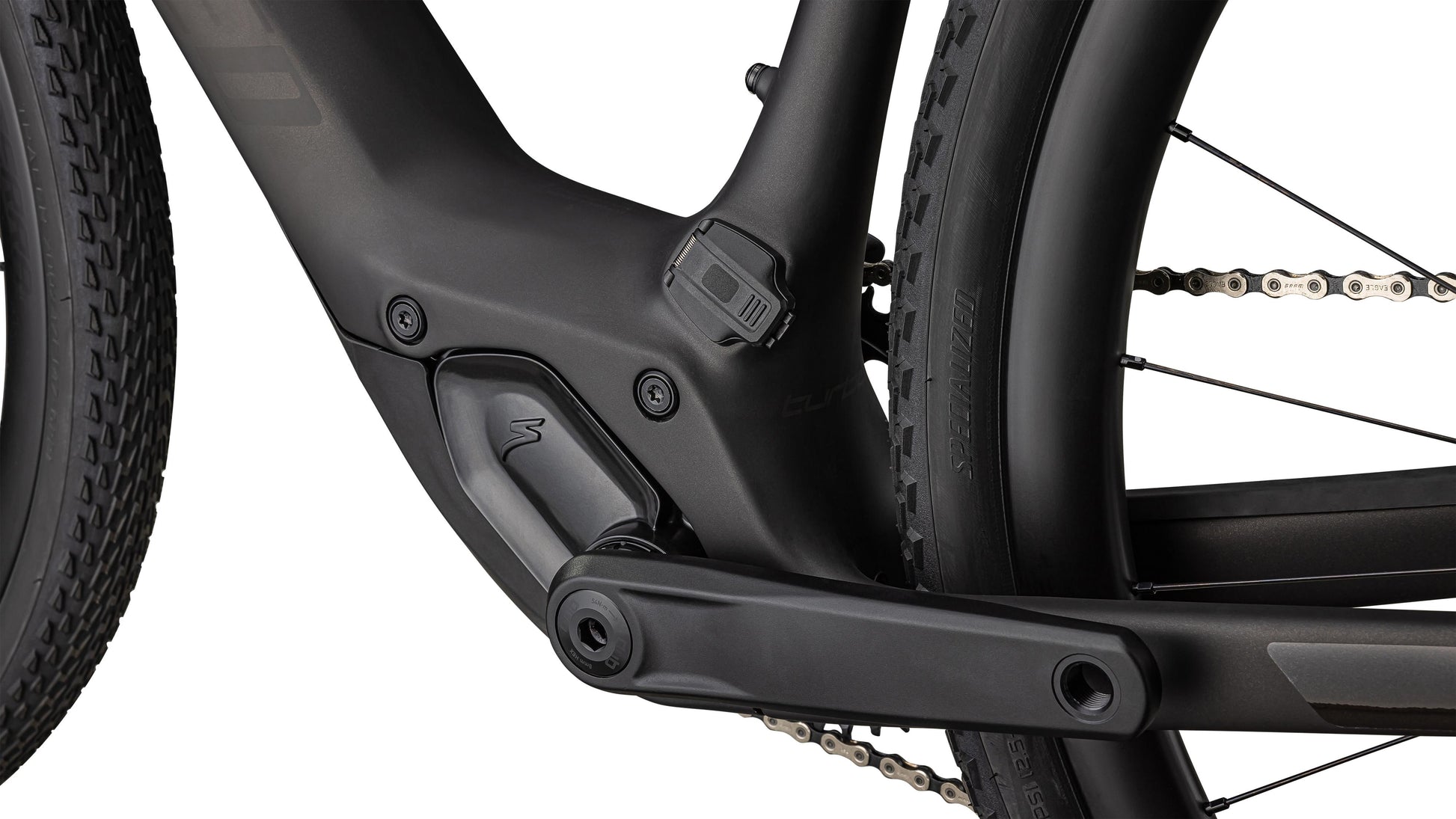

- SUPERNATURAL AMPLIFICATION: The all-new TURBO SL 1.2 system delivers industry-leading efficiency for a range of up to 5 hours. It creates 33% more power (320 Watts) than its predecessor and delivers that power across an ideal pedaling cadence for a supernatural feel. With 43% more torque (50Nm), the power comes on instantly—making quick work of the steepest hills. But less is more when it comes to noise, so we reduced dBs by 40%. It’s literally whisper quiet.
- RE-TIRED FOR CONFIDENCE: 700 x 47c Tires Spec’d but up to 29" x 2.2 Tire Clearance. The big tire volume delivers a smooth and confident ride on the roughest of terrain. And with the Creo 2’s power, you can take all that tire volume to the road with no penalty for a next level silky ride.

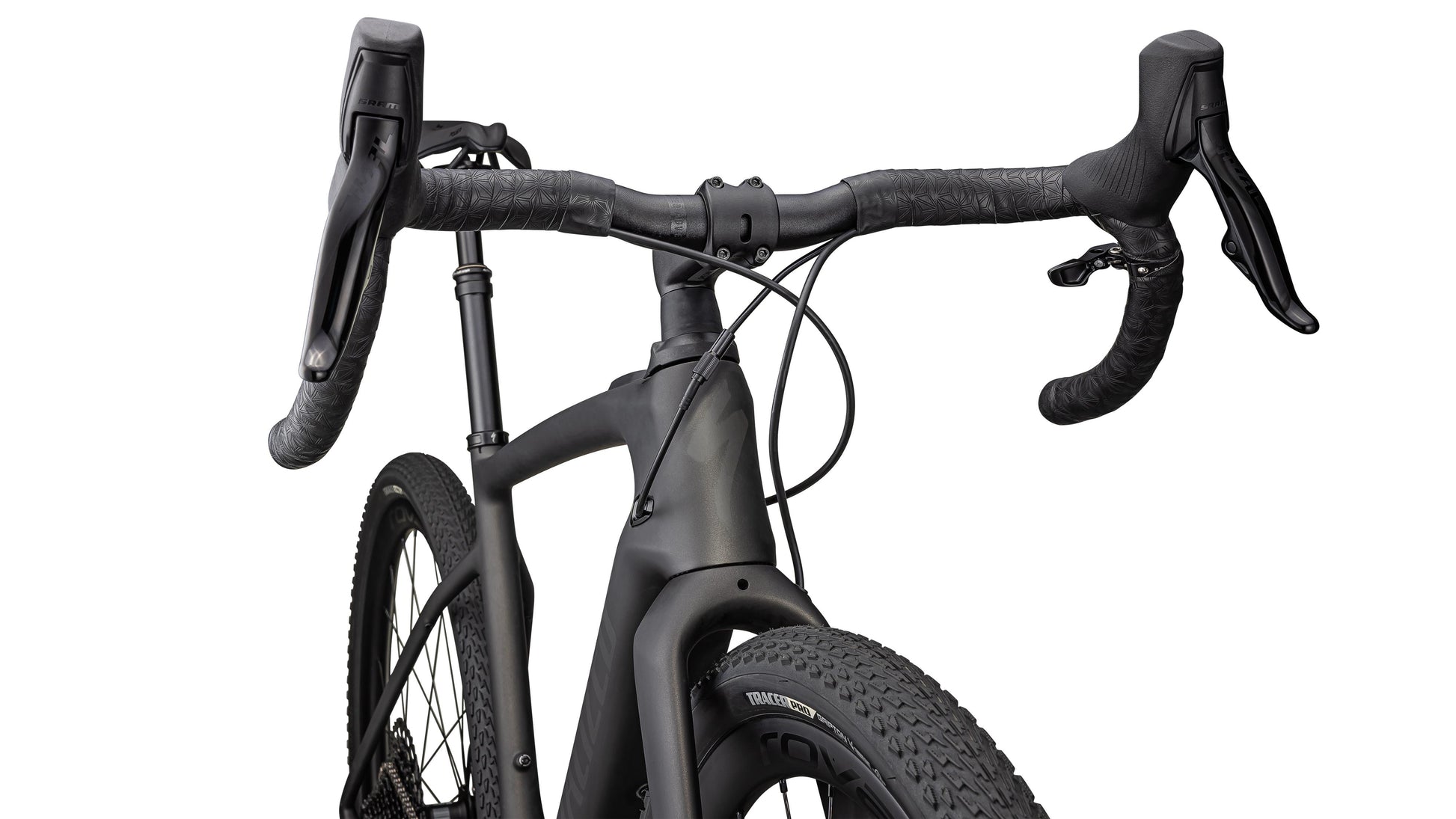

- FUTURE SHOCK 3.0: The Creo 2 features Future Shock 3.0 with 20mm of smooth travel at the handlebars that reduces impacts by 53%. Future Shock helps keep your hands and bars steady for a smoother ride with more control to stay fast, safe, and confident—all while helping reduce fatigue over long days in the saddle.
- THE GEOMETRY OF CAPABILITY: The Creo 2 boasts our most progressive geometry yet that will have you ripping everything from wide open roads to dicey gravel tracks with ultimate confidence. A more ergonomic endurance position feels great, with the power to ride all day.
- TUNE IN, TURN ON, DROP ‘ER DOWN: Lower your center of gravity with the dropper post for enhanced cornering and control in any terrain.
- LOAD UP, HEAD OUT: Take a little or a lot on any ride. Creo 2 accepts a variety of front, rear, and low-rider racks. Who says you can’t take it all?
- YOU’RE IN CONTROL: Our most advanced and intuitive e-bike control unit. Connecting the bike, the Turbo OS, the Specialized App, and the rider, all in a protected and easily visible display. With MicroTune, fine-tuning power output levels in real-time is at your fingertips, optimizing your range management and performance.

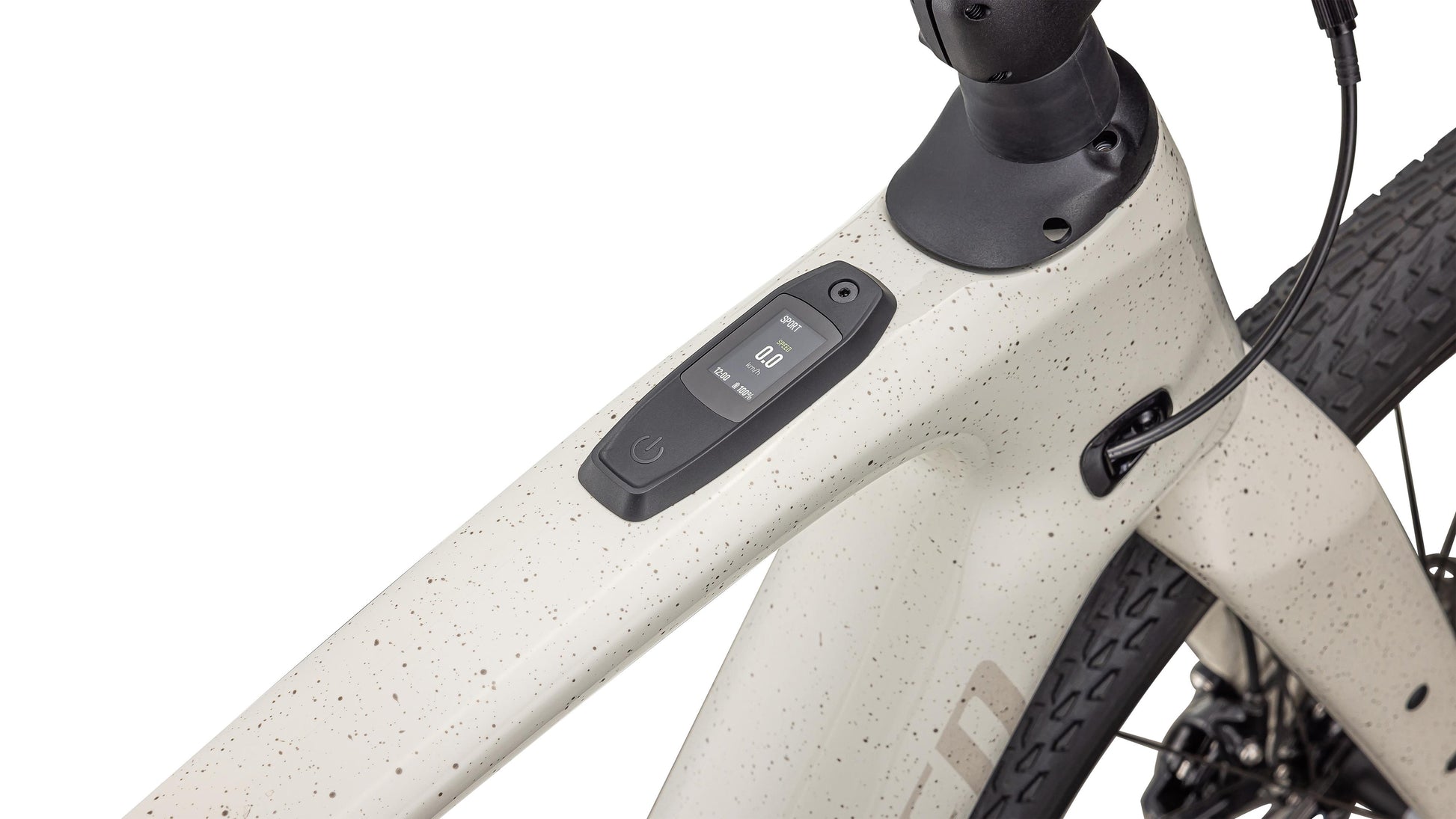

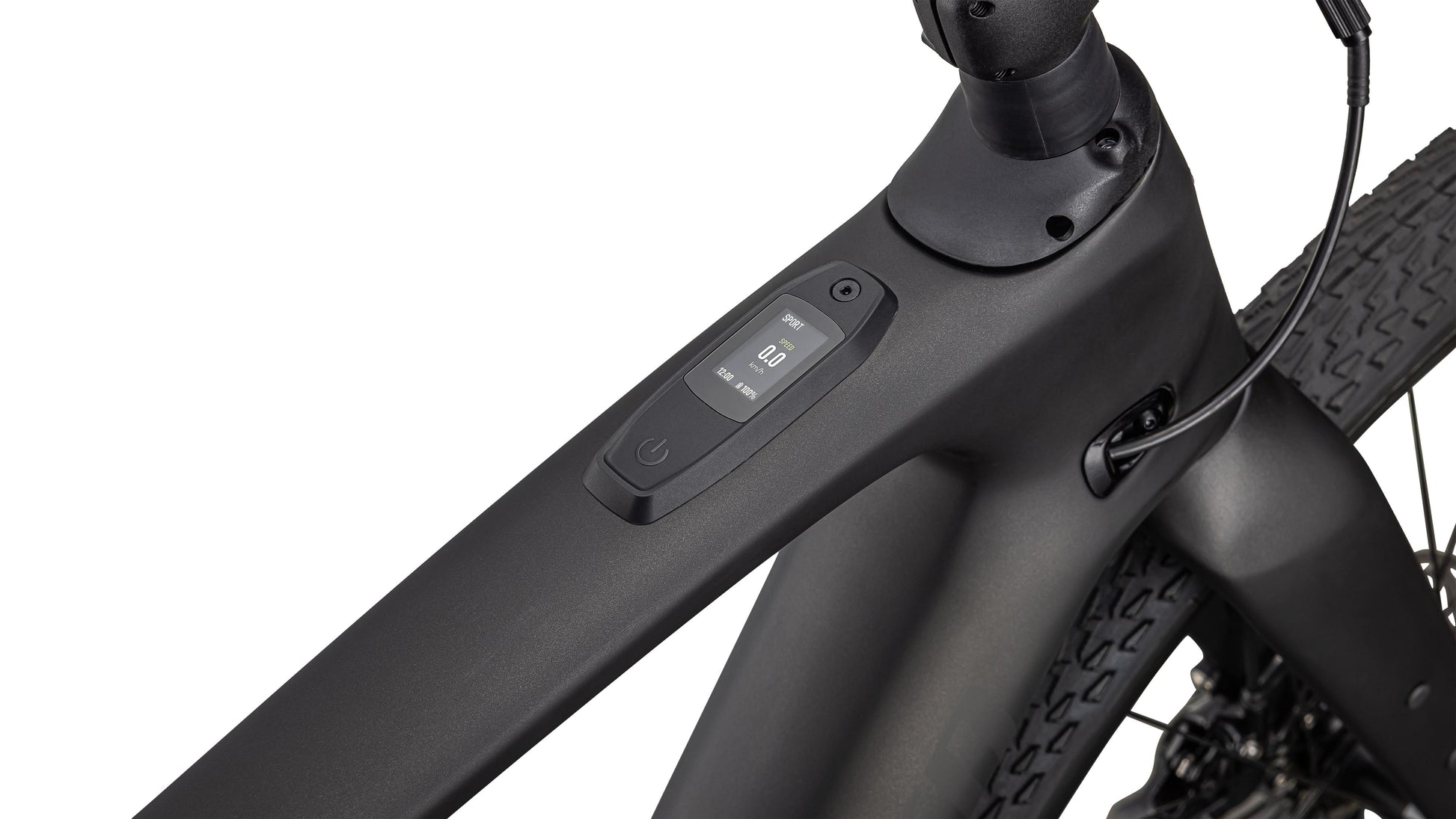

- MASTERMIND TCU: The MasterMind TCU is the brain of the bike. Displaying all relevant info about your ride, it allows real-time tuning of support levels, enables over-the-air updates so that your bike gets better over time, and seamlessly integrates with the Specialized app for advanced tuning, on-trail diagnostics, customizable display, and more.
- ALL-NEW SPECIALIZED APP: The Creo 2 integrates fully with our Specialized App and lets you personalize your motor characteristics. You can record your rides, personalize your screens, track your data, sync with other apps, and even thwart would-be thieves with Turbo System Auto-Lock.
Component Specifications
| E-Bike |
motor
battery
ui remote
charger
wiring harness
|
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
chain rings
|
| Wheels & Tires |
front tire
rear tire
inner tubes
front wheel
rear wheel
|
| Cockpit |
stem
handlebars
saddle
seatpost
tape
|
2024 Specialized Turbo Creo 2 Expert - SRAM Rival / GX Eagle AXS
| Bike/Frame Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 578 mm | 578 mm | 595 mm | 607 mm | 638 mm | 663 mm |
| Reach | 365 mm | 374 mm | 383 mm | 392 mm | 401 mm | 410 mm |
| Chain-Stay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1022 mm | 1031 mm | 1046 mm | 1059 mm | 1079 mm | 1097 mm |
| Top-Tube Length (horizontal) | 531 mm | 540 mm | 554 mm | 572 mm | 590 mm | 613 mm |
| Bike Stand-Over Height | 731 mm | 743 mm | 773 mm | 793 mm | 824 mm | 852 mm |
| Seat-Tube Length | 410 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
| Head-Tube Length | 90 mm | 90 mm | 108 mm | 120 mm | 153 mm | 180 mm |
| Head-Tube Angle | 71° | 71° | 71° | 71° | 71° | 71° |
| B-B Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| B-B Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Fork Length (full) | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Fork Rake/Offset | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front-Center | 600.1 mm | 609 mm | 623.8 mm | 636.6 mm | 656.2 mm | 673.8 mm |
Component Geometry
| Component | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Handlebar Width | 380 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Stem Length | 60 mm | 70 mm | 80 mm | 90 mm | 100 mm | 100 mm |
| Saddle Width | 155 mm | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 350 mm | 350 mm | 350 mm | 400 mm | 400 mm | 400 mm |
