SPECIALIZED

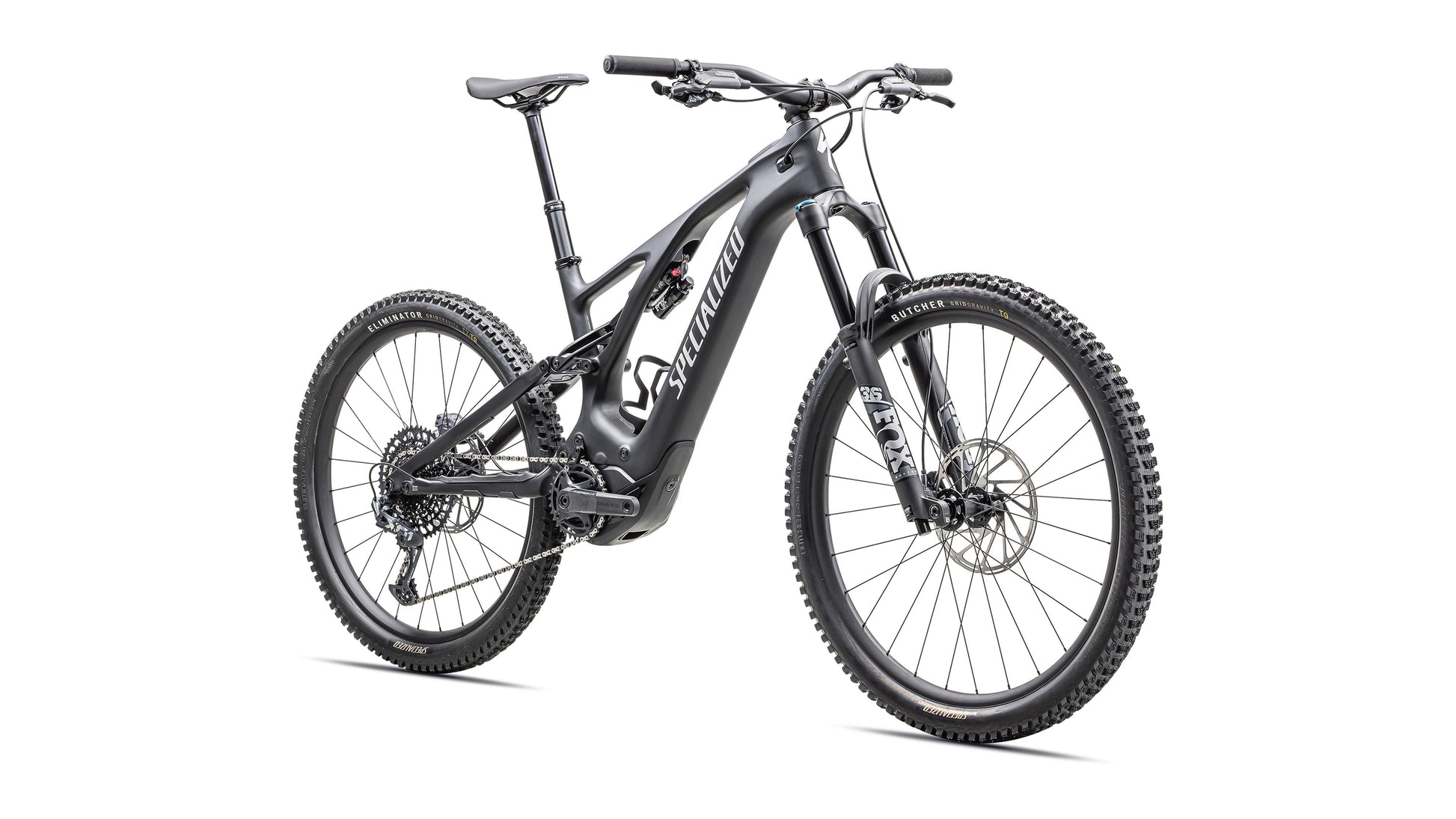

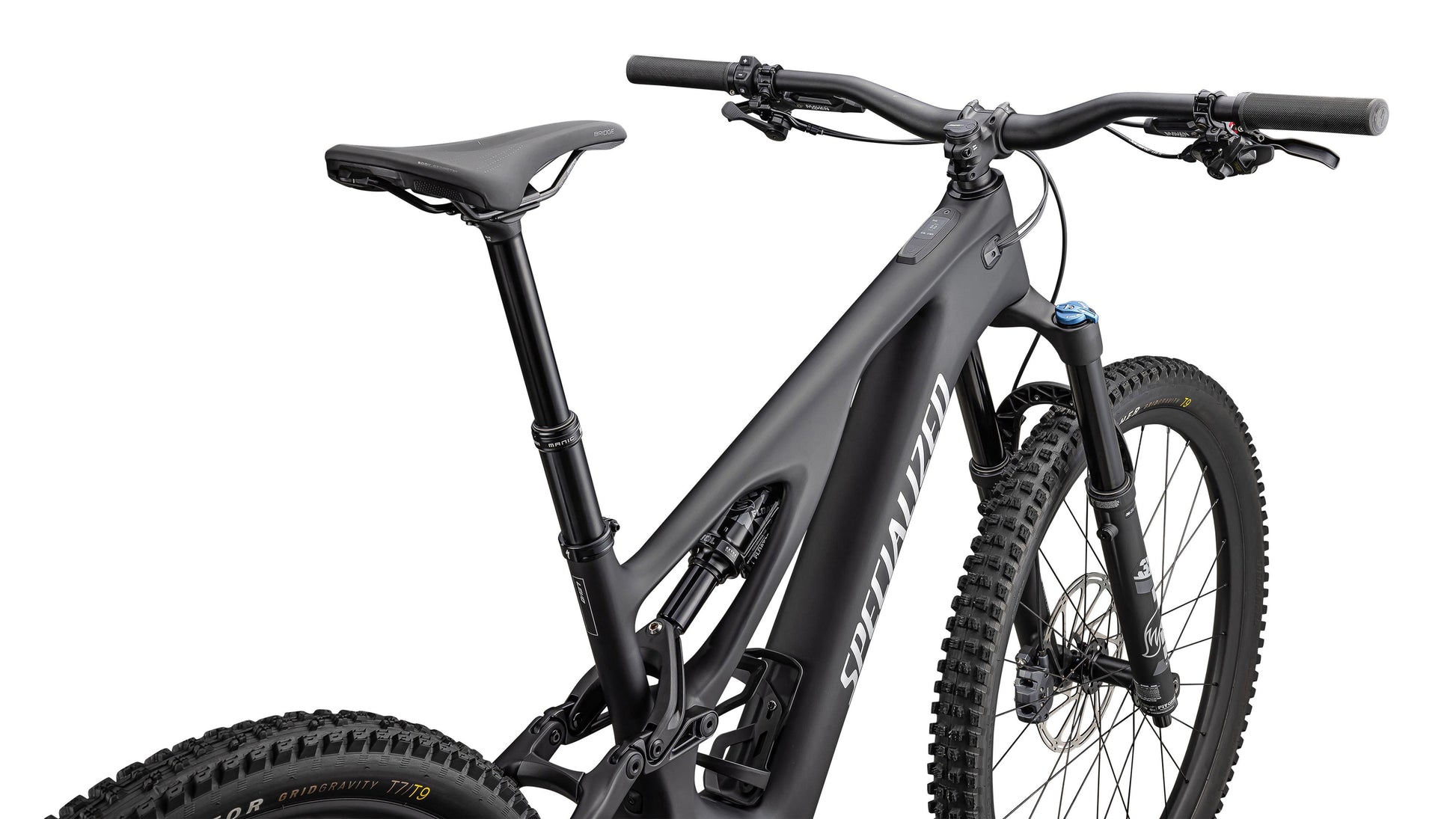

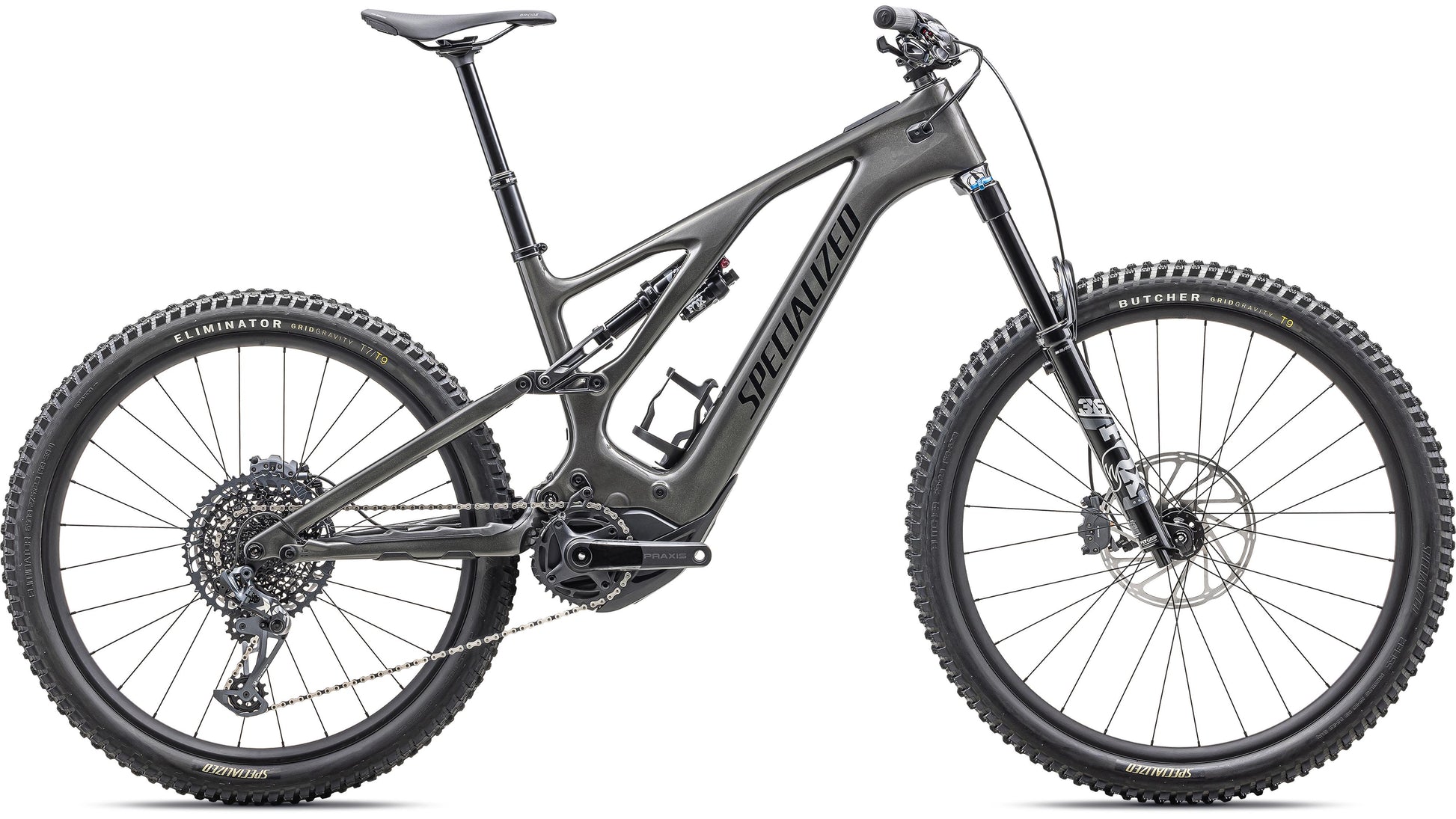

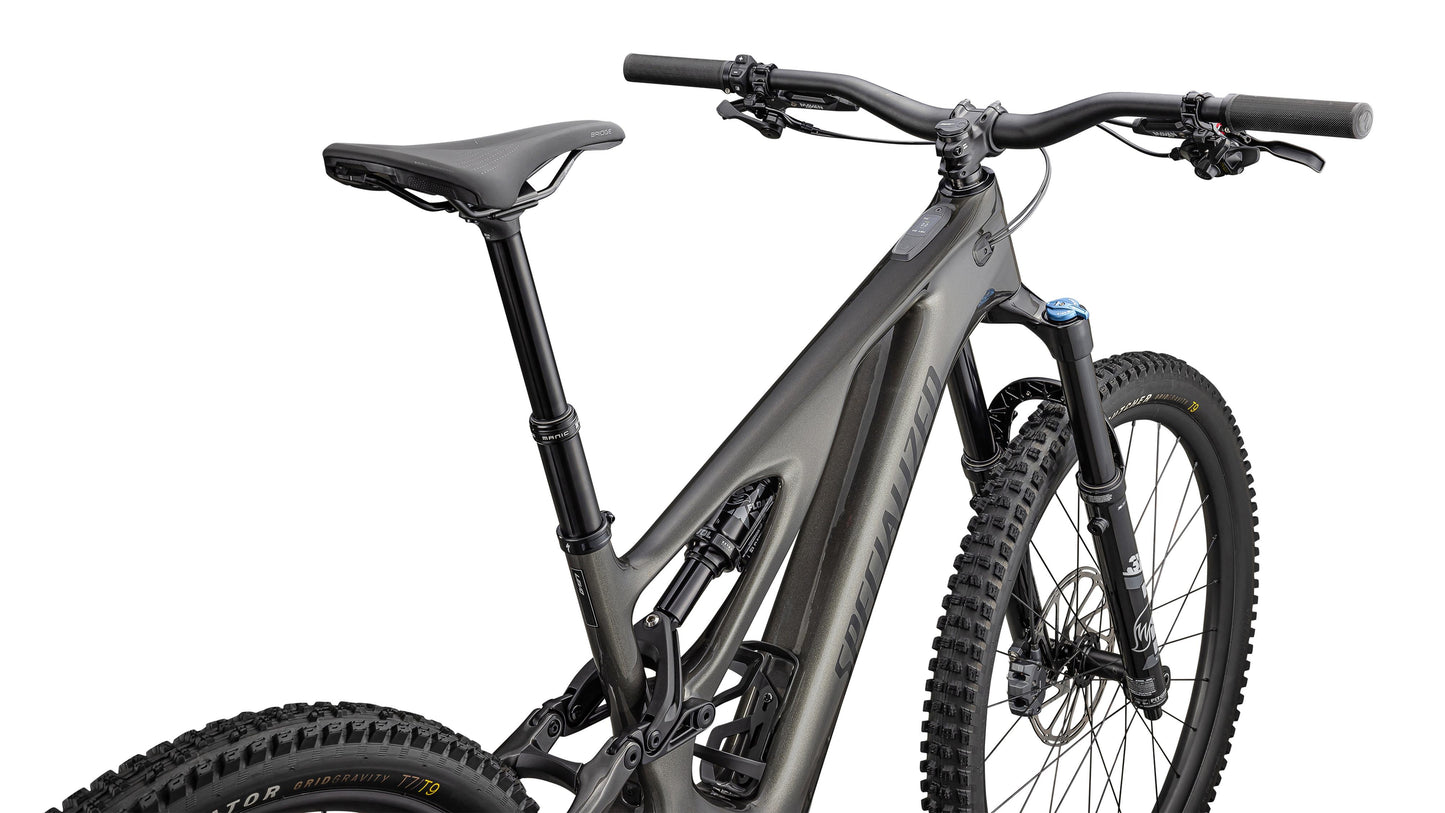

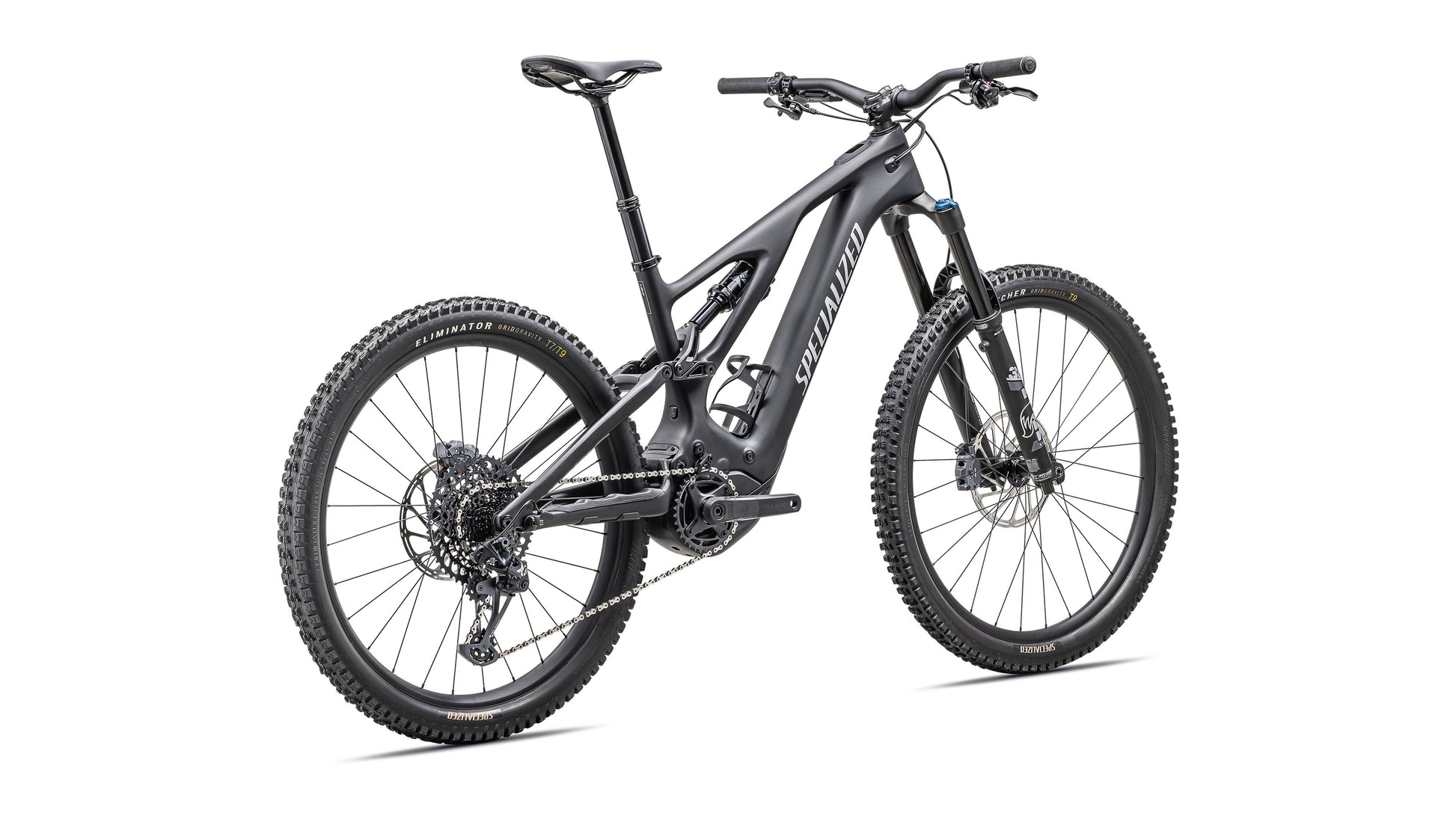

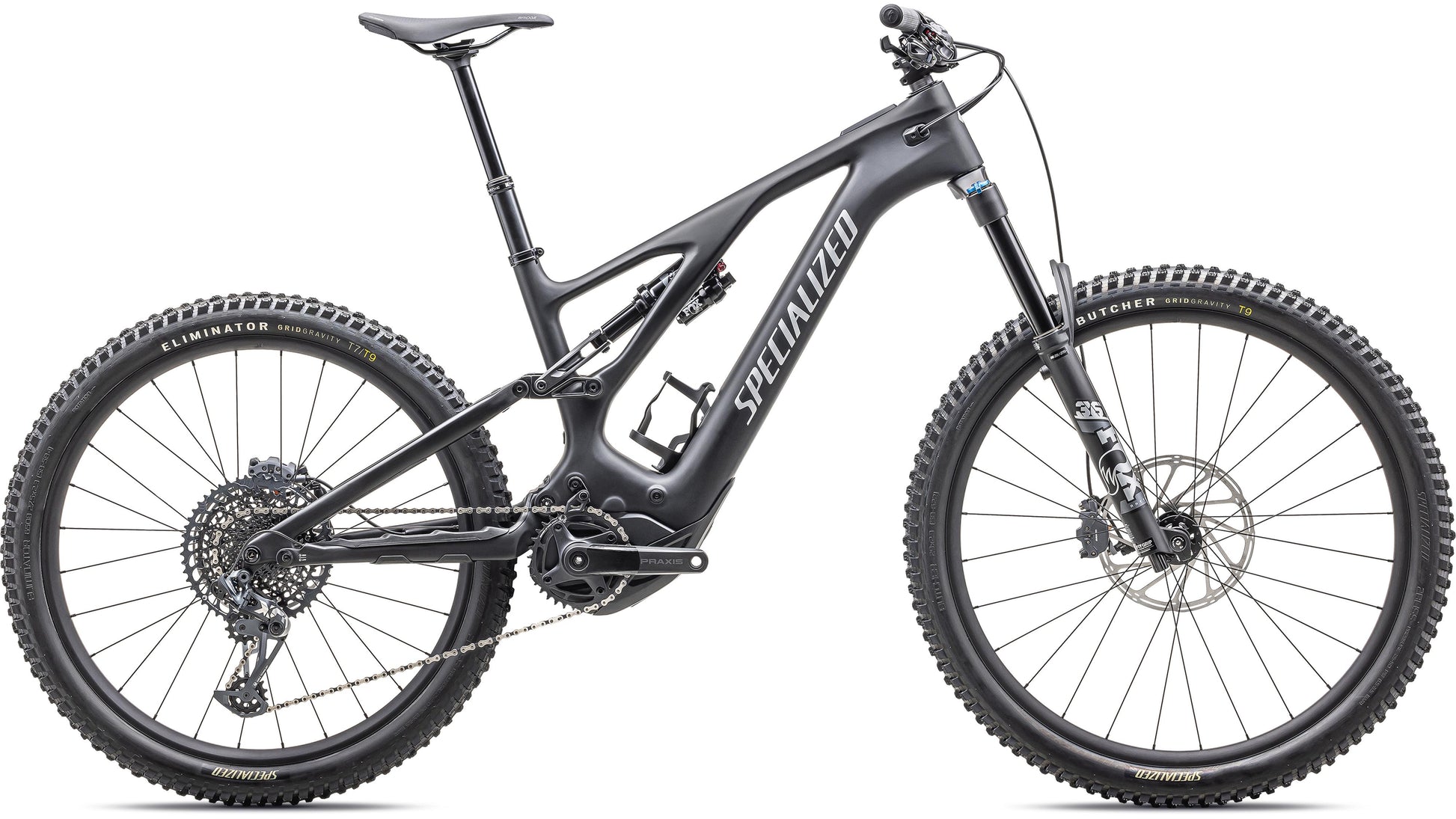

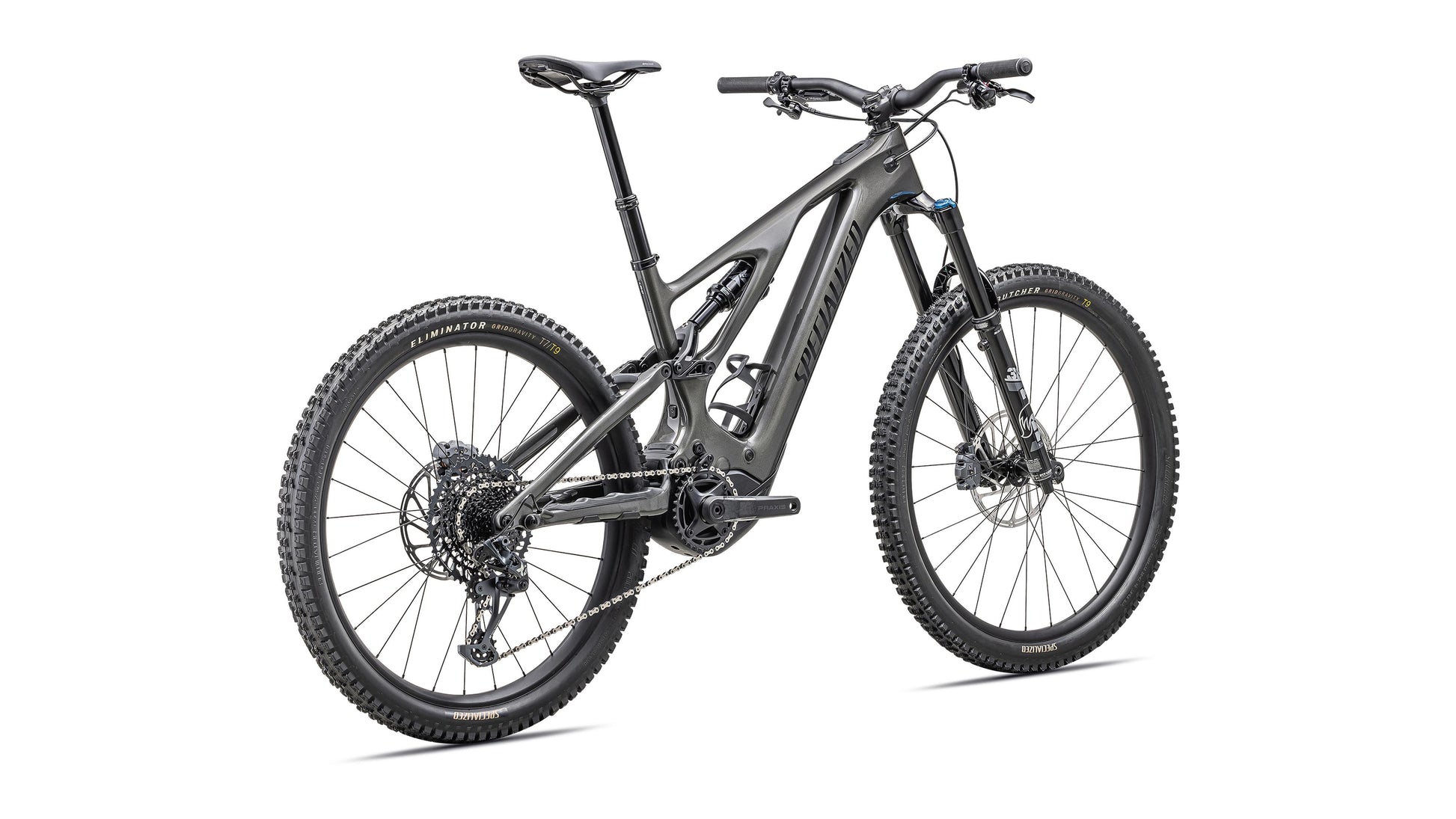

2025 Specialized Turbo Levo 3 Comp Carbon

2025 Specialized Turbo Levo 3 Comp Carbon

SKU:95225-5301U

Regular price $7,499.97
Regular price $8,999.99 Sale price $7,499.97
Sale Sold out
Color
Size
View full details

    2025 Specialized Turbo Levo 3 Comp Carbon Features

    The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

    It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

    More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM X01 drivetrain, trail-taming FOX suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.

    At a Glance

    • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

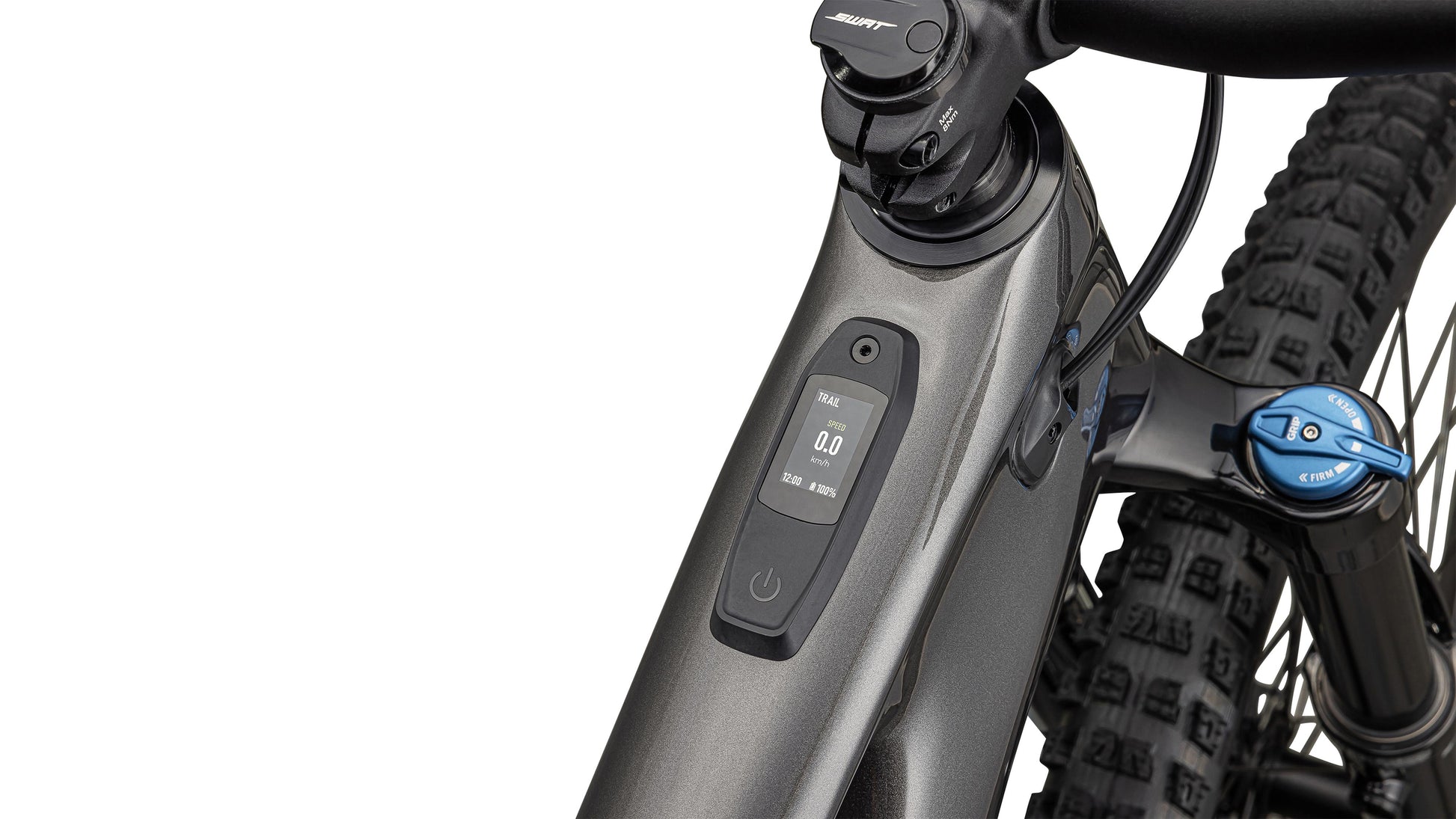

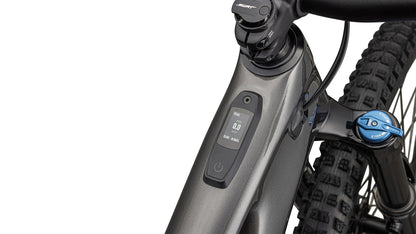

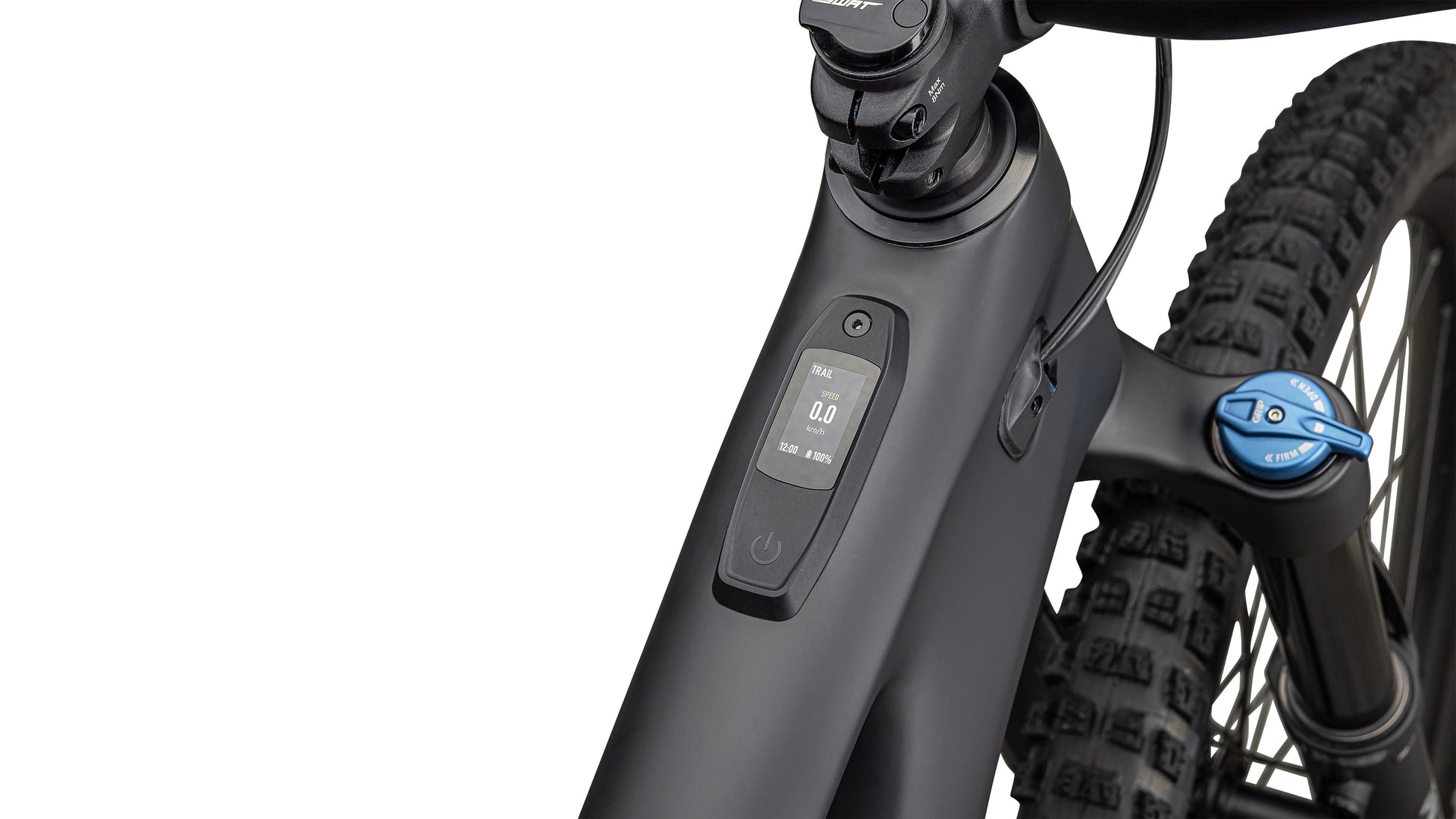

    • The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
    • A dedicated mixed-wheel size design with a 27.5 wheel in the back and 29 up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
    • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

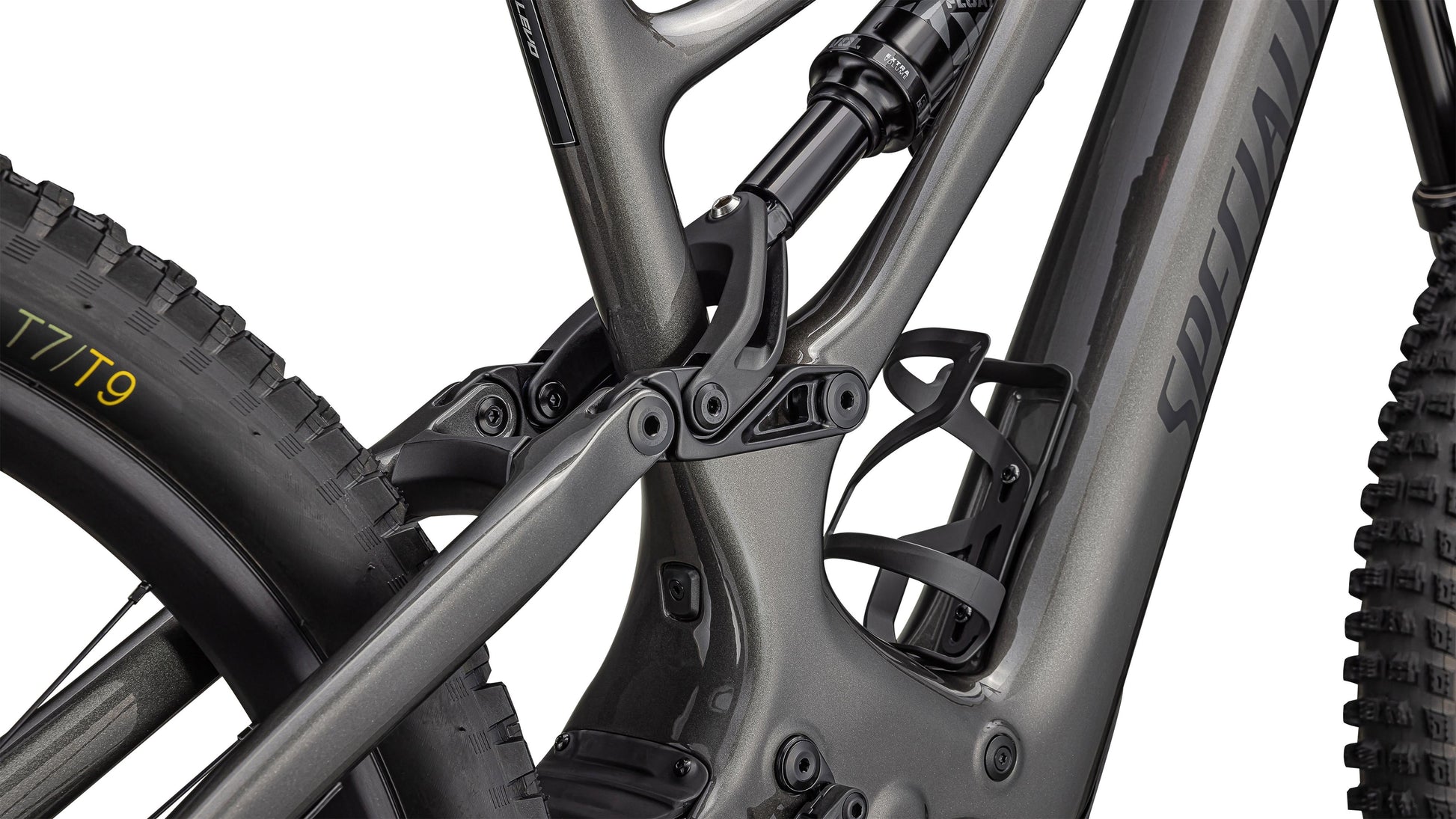

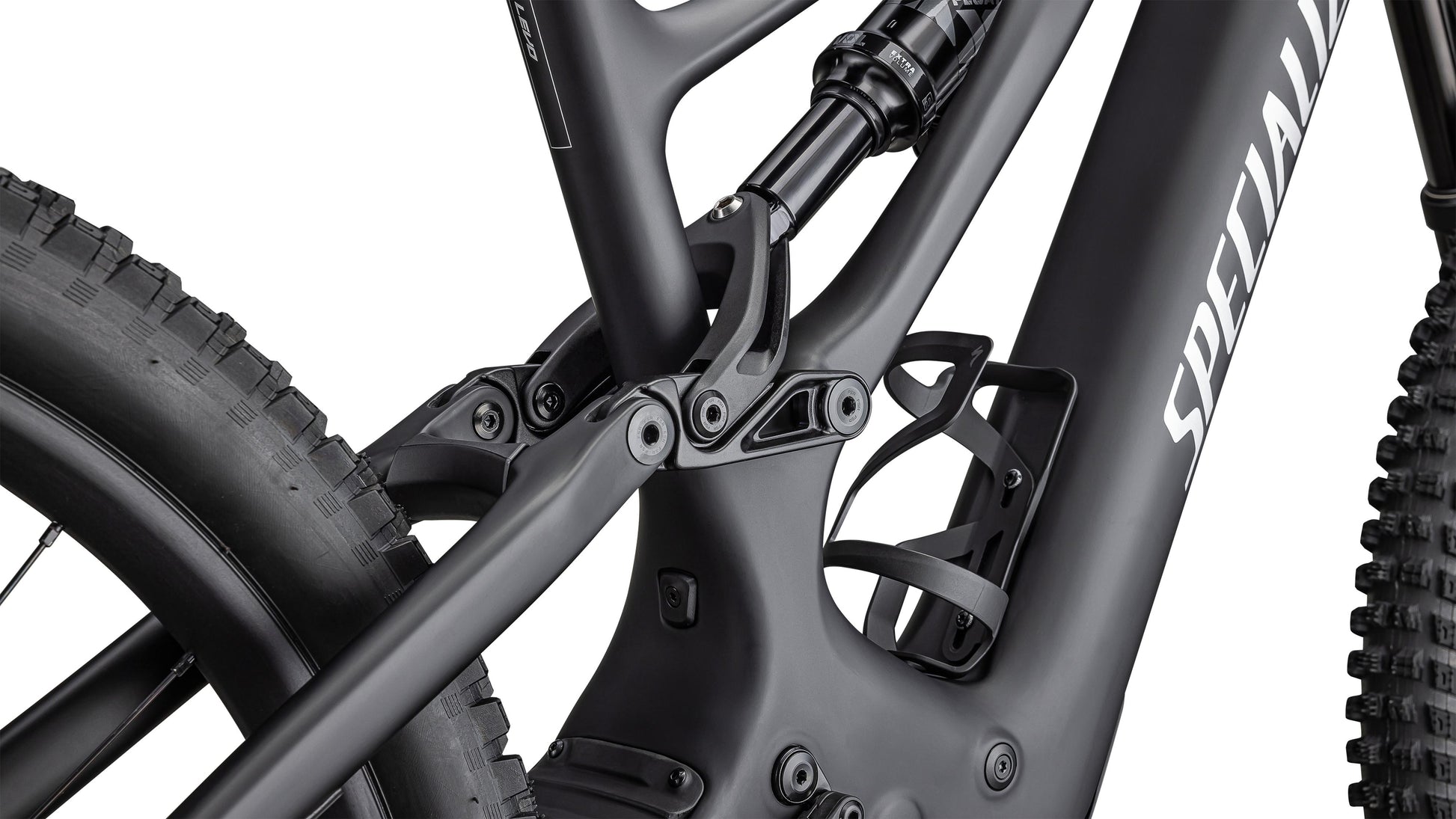

    • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
    • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

    Component Specifications

    E-Bike
    motor

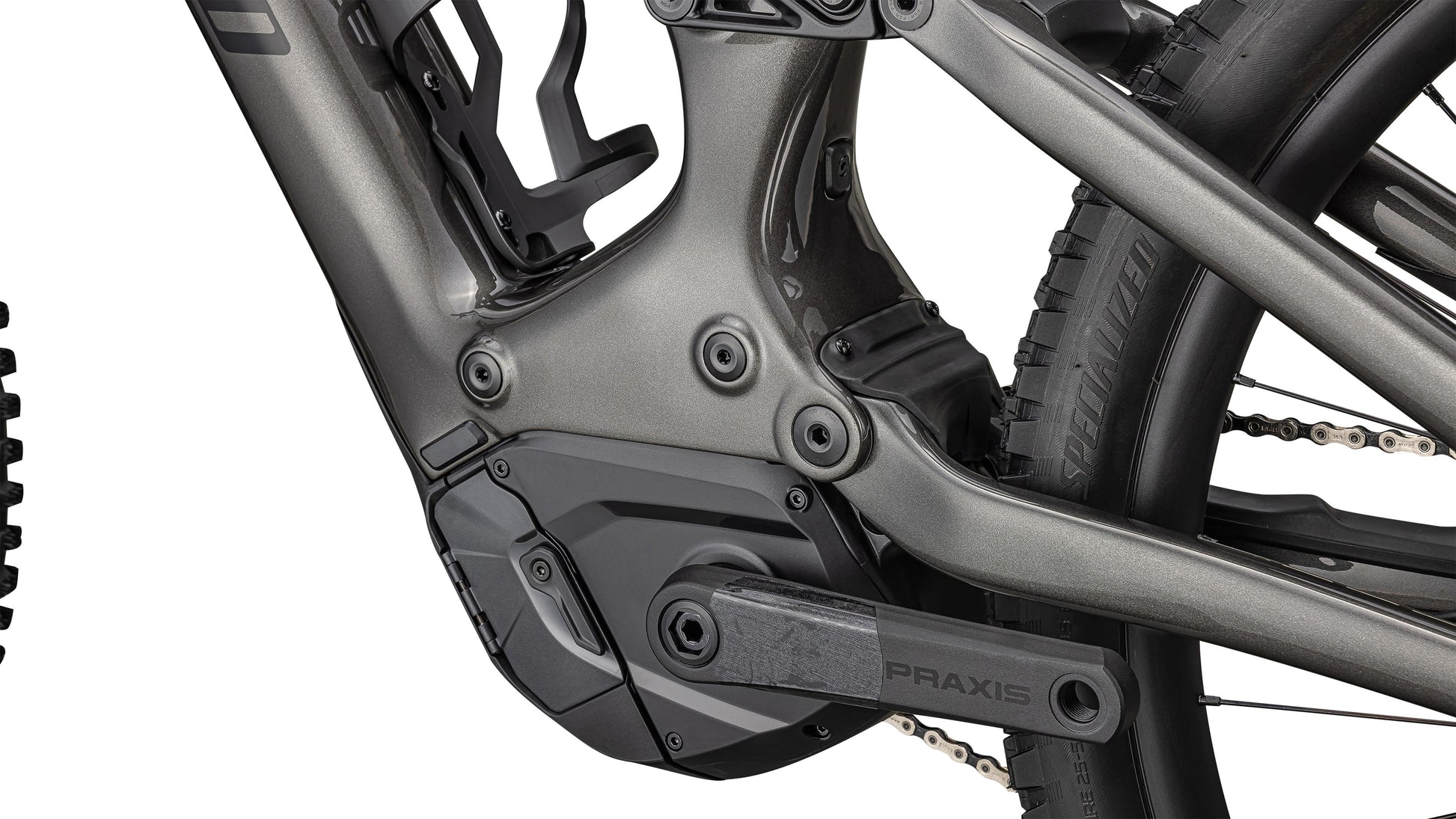

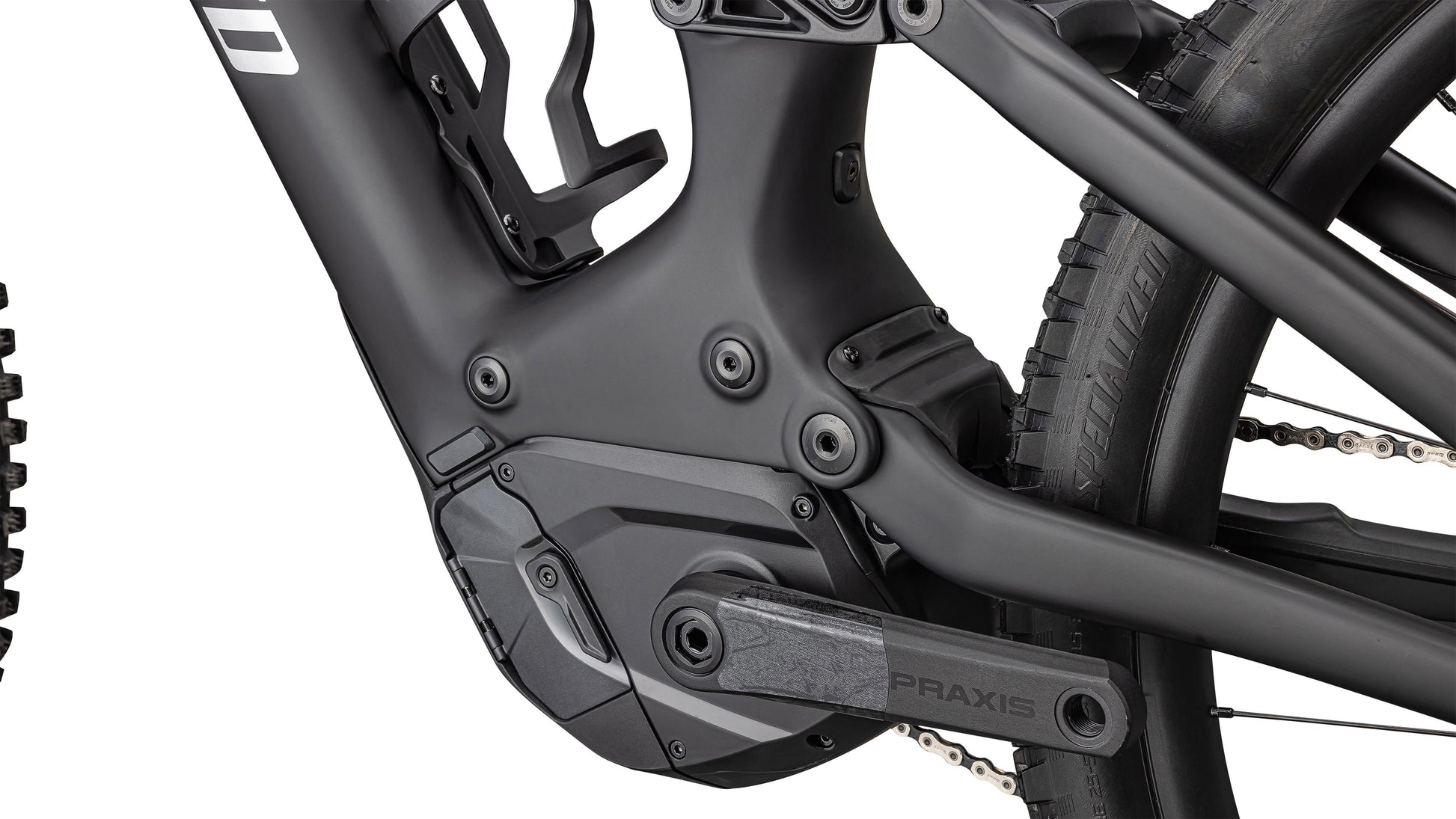

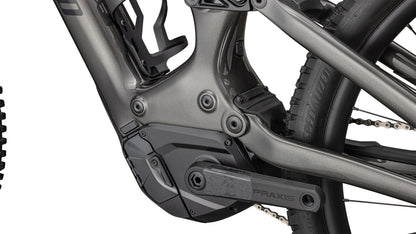

    Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
    battery
    Specialized M3-700, Integrated battery, 700Wh
    ui remote
    Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
    charger
    Custom charger, 42V4A w/ Rosenberger plug, 100-240V
    wiring harness
    Custom Specialized wiring harness
    Frameset
    frame
    FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
    seat binder
    Alloy, 38.6mm
    Suspension
    rear shock

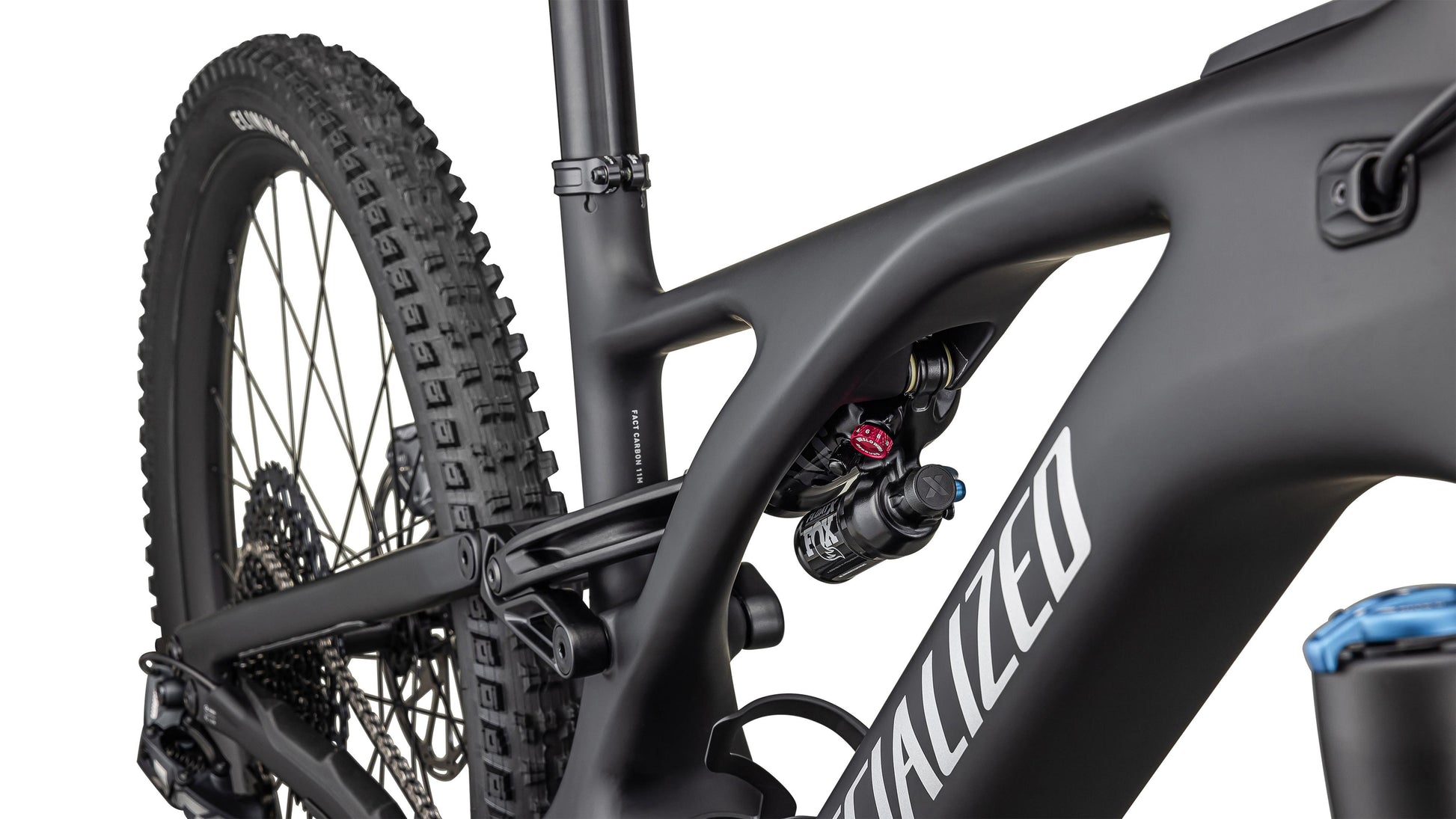

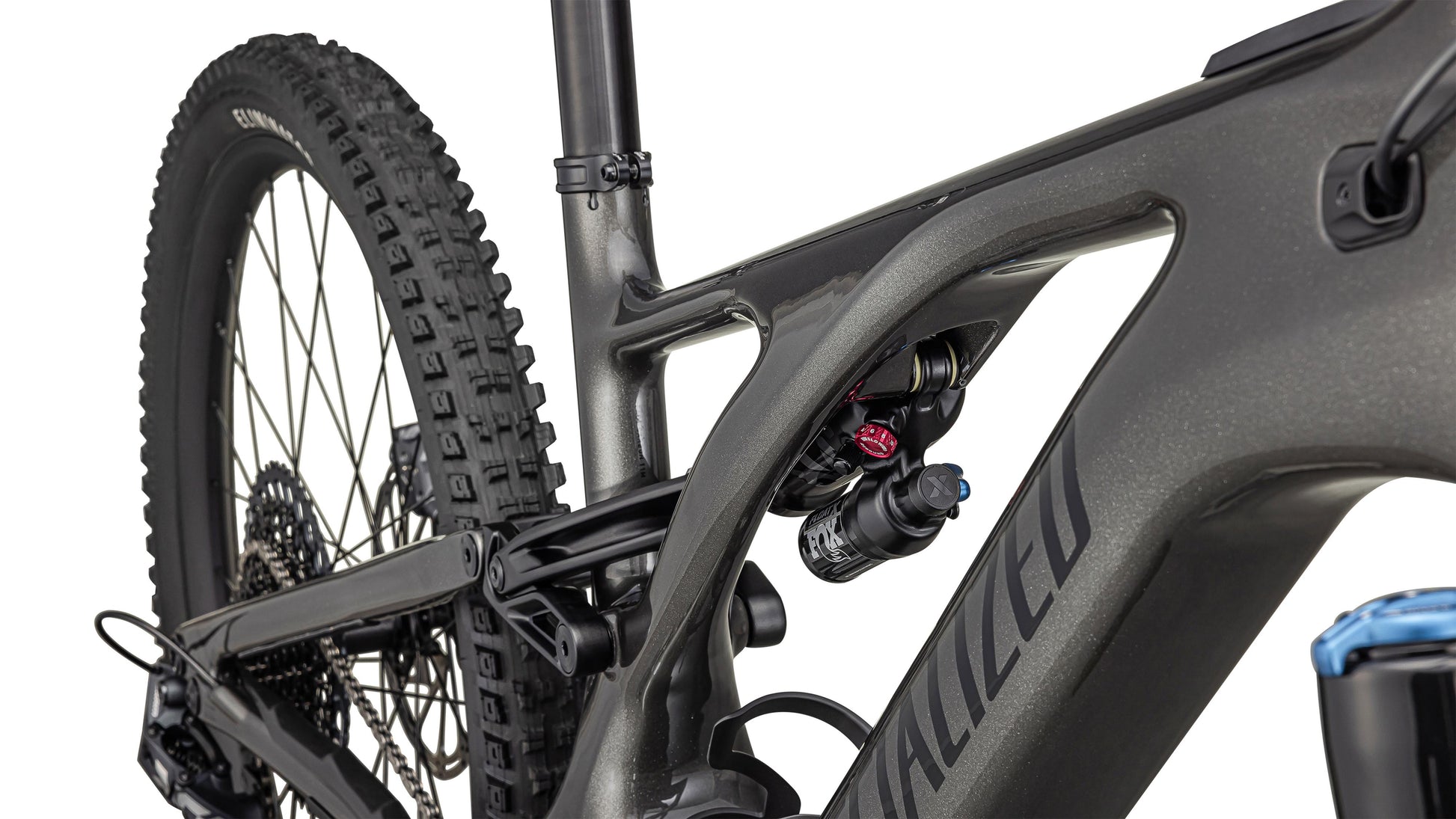

    Sizes S2-26: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm. Size S1: FOX FLOAT DPS Performance
    fork
    Fox 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, Grip damper
    Brakes
    front brake
    SRAM Maven Bronze, 220mm rotor, metallic pads
    rear brake
    SRAM Maven Bronze, 200mm rotor, metallic pads
    Drivetrain
    shift levers
    SRAM GX Eagle, trigger, 12-speed, single click
    rear derailleur
    Sram X01 Eagle, 12-speed
    cassette
    Sram XG-1275, 12-speed, 10-52t
    chain
    SRAM GX Eagle, 12-speed
    crankset
    Praxis forged M30, custom offset, 160mm
    chain rings
    SRAM X-Sync Eagle, 104 BCD, 32T, steel
    Wheels & Tires
    rims
    Specialized, hookless alloy, 30mm inner width, tubeless ready
    front hub
    Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
    rear hub
    Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
    spokes
    DT Swiss Industry
    front tire
    Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
    rear tire
    Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"
    inner tubes
    Standard, Presta Valve
    Cockpit
    stem
    Alloy Trail Stem, 35mm bar bore
    handlebars

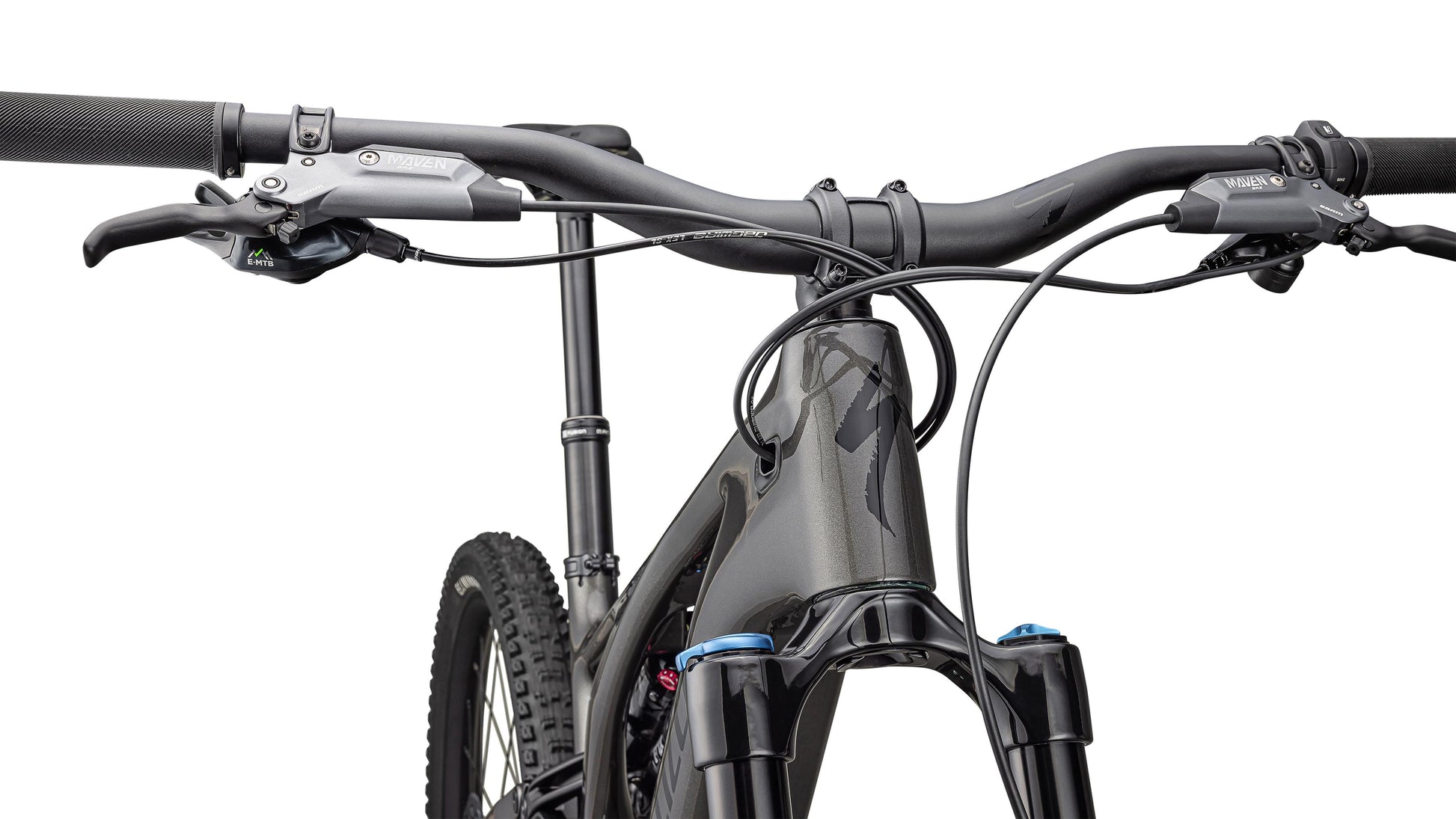

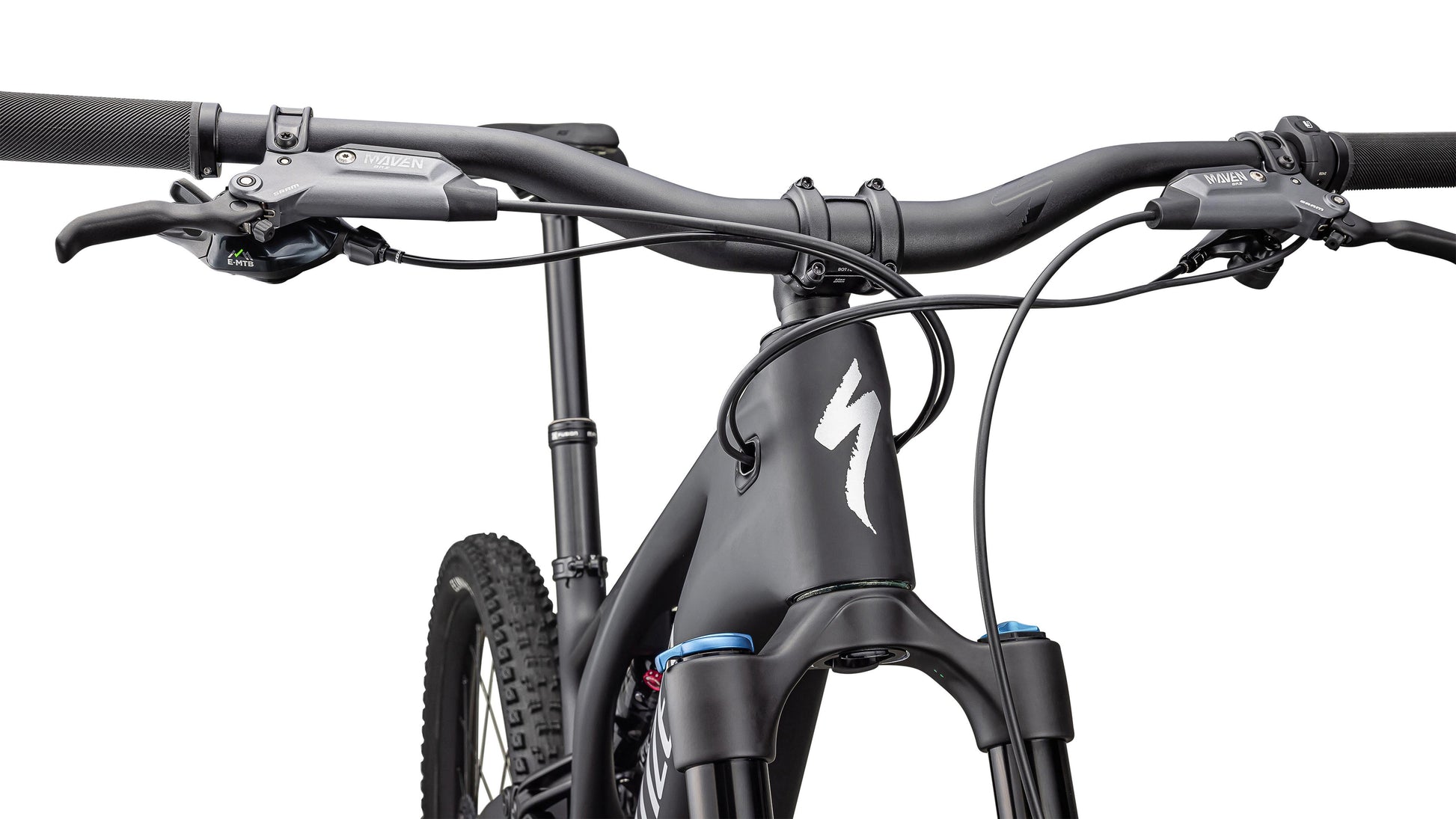

    6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise
    grips
    Specialized Trail Grips
    saddle
    Bridge Comp, Hollow Cr-mo rails 155/143
    seatpost
    X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
    Accessories
    swat
    SWAT CC steerer tube integrated tool with chain tool and link

    2025 Specialized Turbo Levo 3 Comp Carbon

    Bike/Frame Size S1 S2 S3 S4 S5 S6
    Stack 605 mm 617 mm 626 mm 635 mm 644 mm 653 mm
    Reach 412 mm 432 mm 452 mm 477 mm 502 mm 532 mm
    Chainstay Length 442 mm 442 mm 442 mm 442 mm 442 mm 442 mm
    Wheelbase 1179 mm 1200 mm 1225 mm 1255 mm 1284 mm 1318 mm
    Bike Standover Height 752 mm 776 mm 783 mm 787 mm 788 mm 790 mm
    Seat Tube Length 380 mm 390 mm 405 mm 425 mm 445 mm 465 mm
    Seat Tube Angle 78° 77.2° 76.7° 76.2° 76.2° 76.2°
    Max Seatpost Insertion 210 mm 220 mm 240 mm 255 mm 275 mm 295 mm
    Min Seatpost Insertion 80 mm 80 mm 80 mm 80 mm 80 mm 80 mm
    Headtube Length 105 mm 105 mm 115 mm 125 mm 135 mm 145 mm
    Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5° 64.5°
    BB Height 352 mm 350 mm 350 mm 350 mm 350 mm 350 mm
    BB Drop 25 mm 27 mm 27 mm 27 mm 27 mm 27 mm
    Trail 130 mm 130 mm 130 mm 130 mm 130 mm 130 mm
    Fork Length (full) 557 mm 567 mm 567 mm 567 mm 567 mm 567 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
    Front Center 738 mm 760 mm 784 mm 814 mm 843 mm 878 mm

    Component Geometry

    Component S1 S2 S3 S4 S5 S6
    Crank Length 160 mm 160 mm 160 mm 160 mm 160 mm 160 mm
    Handlebar Width 800 mm 800 mm 800 mm 800 mm 800 mm 800 mm
    Stem Length 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm
    Saddle Width 155 mm 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 100 mm 125 mm 150 mm 170 mm 170 mm 190 mm
